Tissue Culture Microscope
With its ergonomics, modularity and unmatched optical performance, WTC 6000 finds vast application in Cancer Research, Sirology, Urology, Histology, Virology, Parasitology, Microbiology
Siedentopf head with diopter ring on ocular for correcting eye acuity.
Specially designed perfect flat field objectives with long working distance (LWD) corrected for bottom thickness of bottles, flasks.
Hard coated mechanical stage with low positioned large focussing knobs provide stress free operation.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
| Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability. | |||||
| Observation Head | Siedentopf Trinocular 30o inclined, 360o rotatable. Interpupillary distance adjustable between 48-75mm. Diopter adjustment ring on ocular provides correction for eye acuity. | |||||
| Eyepiece | Eyepiece PWF 10x (PAIRED) FOV 18mm | |||||
| Nosepiece | Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. | |||||
| Objectives | LWD Plan Achromatic 10x/0.25 WD 10mm. LWD Plan Achromatic 25x/0.40 WD 5.0mm LWD Plan Achromatic 40x/0.60 WD 3.6mm | |||||
| Stage | Hard coated mechanical stage of Size 180mmx165mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement. Cross movement 50mmX40mm. | |||||
| Focusing | Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm. | |||||
| Condenser | Extra long working distance 70mm condenser NA 0.35 having a spherical lens, field diaphragm and pull out filter socket | |||||
| Illumination | Incorporates 6V/20W Halogen lamp with a spherical collector lens, continuous regulation of the illumination. | |||||
| Packaging contents | Blue glass Filters Electric Cable, Fuse, Vinyl Dust Cover, Operating Manual. STYROFOAM molded box |

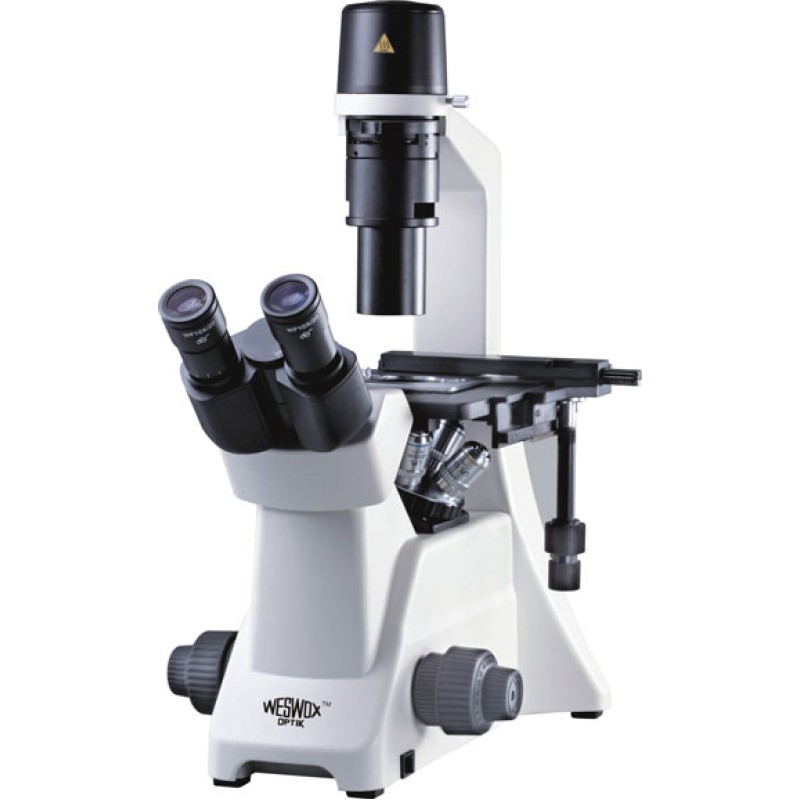

Tissue Culture Microscope WTC 6000
- Views: 318
-
The Western Electric and Scientific Works - Vendor Type: Manufacturer, Exporter
- Product Code: WESWOX0034
- Availability: In Stock
- ₹0
