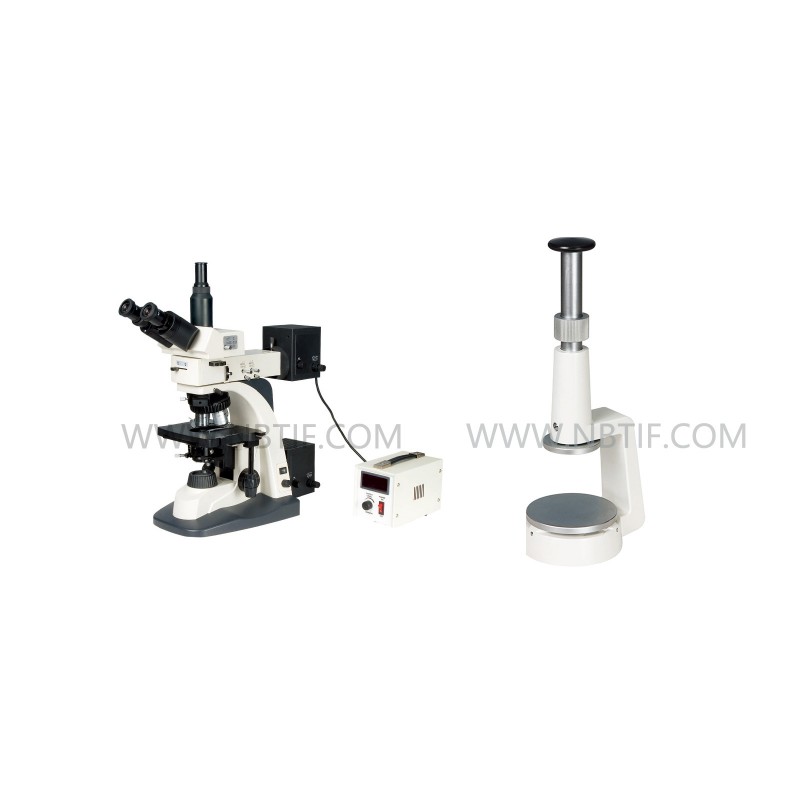

Industrial Metallurgical Microscope XJP-158J

XJP-158J Metallurgical microscope is developed and aimed at the semiconductor industry, wafer manufacturing, electronic information industry, metallurgical industry, Used as an advanced Metallurgical microscope, the user can experience its super performance when using it. It can be widely used to identify and analyze Semiconductor, FPD, Circuit encapsulation, circuit substrate, Material, Casting/Metal/Ceramic parts, Precision moulds. This instrument adopts both reflecting and transmitted illumination, Bright&Dark field, DIC and Polarizing observation can proceed under reflecting illumination, and the Bright field observation is done under transmitted light. High quality and reliable optical system brings much clearer and sharper image. The design meets with the ergonomics needs and makes you feel comfortable and relaxed in doing your job.

Characteristics and description

    • Adopt UIS High-resolution, long working distance, and infinity light path correcting system objective imaging technology
    • Extending the multiplexing technology of objective, compatible infinity objective with all the observation methods, including bright&dark field observation, polarization and DIC also provide with high clear and sharp image in each observation method.
    • Aspherical surface Kohler illumination, increasing the viewing brightness.
    • WF10×(Φ25)Super wide viewing field Eyepiece, long working distance metallurgical objective with bright and dark field
    • The Nosepiece can be equipped with detachable DIC differential interference device.
    Specification
    Viewing Head
    Compensation Free Trinocular Head, Inclined 30°(50mm-75mm)

    Eyepiece

    WF10×/25mm

    WF10×/20mm,crosshair with reticule 0.1mm





    Objective

    Long working distance bright&dark field Infinity.Plan Objectives:

    5×/0.1B.D/W.D.29.4mm、10×/0.25B.D/W.D.16mm、20×/0.40B.D/W.D.10.6mm、40×/0.60B.D/W.D.5.4mm、


    Nosepiece

    With DIC Jack Quadruple Nosepiece


    Stage

    Double layer mechanical stage

    Stage Size: 189mm×160mm

    Moving Range:80mm×50mm


    Filter

    Flashboard type Filters (green,blue,neutral)


    Condenser

    N.A.1.25 Abbe Condenser with iris diaphragm and filter


    Focusing

    Coaxial coarse &fine focusing adjustment with rack and pinion mechanism.Fine focusing scale value 0.002mm


    Light Source

    Transmission Illumination: Halogen Bulb 12V/50W,AC85V-230V, Brightness Adjustable

    Epi-illumination:With aperture iris diaphragm and field iris diaphragm, halogen Bulb 12V/50W,AC85V-230V, Brightness Adjustable


    Polarizing Device

    Analyzer 360°rotatable,both Polarizer and Analyzer can be moved out of the light path
