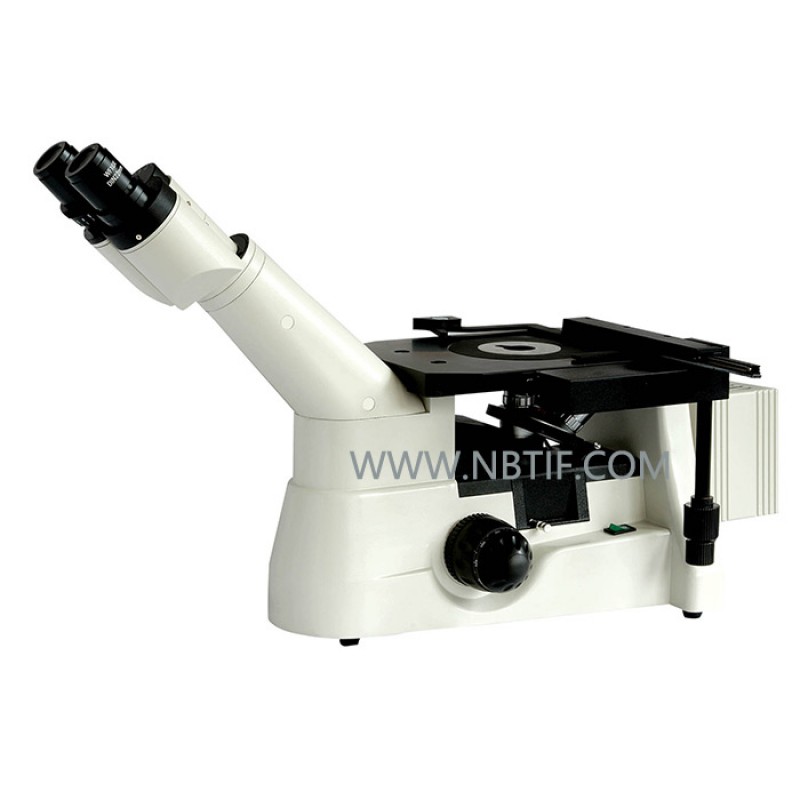

Industrial Metallurgical Microscope XJP-403JT

This series microscope is widely used in observation & analysis of metallurgical organization in Mechanical industry, Research of Geological & Mineral department and viewing & measuring crystal, integrate circuit, micro-electronics, etc in Electronic industry. It is the first choice of Factories, Academy, Scientific research organization contrast image. Novel figure and superior craftsmanship keep abreast of the tidal current much more.

Humanized configuration design and simple operation, Let you release from the pressure of heavy work.

Specification:

Viewing head

Compensation Free Trinocular Head.Inclined at 45 ° ( 50mm -75mm )


Eyepiece

WF10X/20mm

WF10X/20mm with reticule 0.1mm

Nosepiece
Quintuple nosepiece
Stage

Double layers mechanical stage

Stage size: 242mm × 172mm

Central stage: Φ110mm

Moving range: 75mm × 50mm








Focusing
Coaxial coarse & fine focusing adjustment  with rack and pinion mechanism Fine focusing scale Value 0.002mm
Illumination
Epi-Kohler illumination. With aperture iris diaphragm and field iris diaphragm. 12V/30W.AC85V-230V Adjustable brightness
Filter
Blue, green, yellow
Polarizing outfit
Analyzer rotatable 360 ° ,polarizer & Analyzer can be slided slided in / out of the optical path
Checking tool
0.01mm micrometer
Optional Accessory
1.3、2.0、3.0、5.0 Mega pixels CMOS electronic eyepiece Photography attachmrnt
