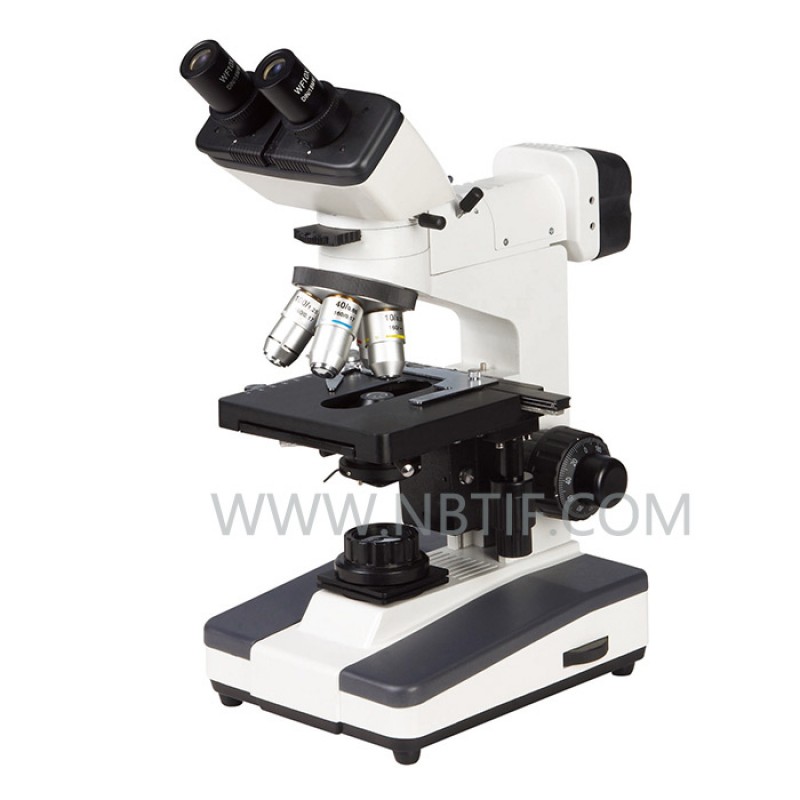

Industrial Metallurgical Microscope XJP-408

XJP-408 Up-right Metallurgical Microscope is applicable to the observation of transparent and opaque objects. It is equipped with Epi-illumination, transmission illumination system, plan achromatic objectives with sharp & clear image and good contrast. In the meanwhile, it is eguiped with polarizing device, it’s an ideal instrument for research such as Metallographic, Precision Engineering and Electronics, suitable for School, Scientific research department and factories as well.

Specification
Viewing Head
Compensation Free Binocular Head Inclined at 30°(50mm-75mm)


Eyepiece

WF10×/18mm

WF10×/18mm,crosshair with reticule 0.1mm





Objective

Metallurgical objectives:4×/0.1W.D.25mm,10×/0.25W.D.11mm、20×/0.4W.D.9mm、40×/0.6W.D.3.8mm


Nosepiece


Quadruple nosepiece


Stage

Double layer mechanical stage

Stage Size: 140mm×140mm

Moving Range:75mm×50mm


Filter


Flashboard type Filters (green,blue,neutral)


Illuminator


N.A.1.25 Abbe condenser with iris diaphragm and filter


Focusing


Coaxial coarse &fine focusing adjustment with rack and pinion mechanism.Fine focusing scale value 0.002mm


Light Source

Epi-illumination: Halogen Bulb 6V/20W, AC85V-230V,Adjustable brightness

Transmission illumination: Halogen Bulb 6V/20W, AC85V-230V,Adjustable brightness


Polarizing Device

Analyzer  360°rotatable, both Polarizer and Analyzer can be moved out of the light path
