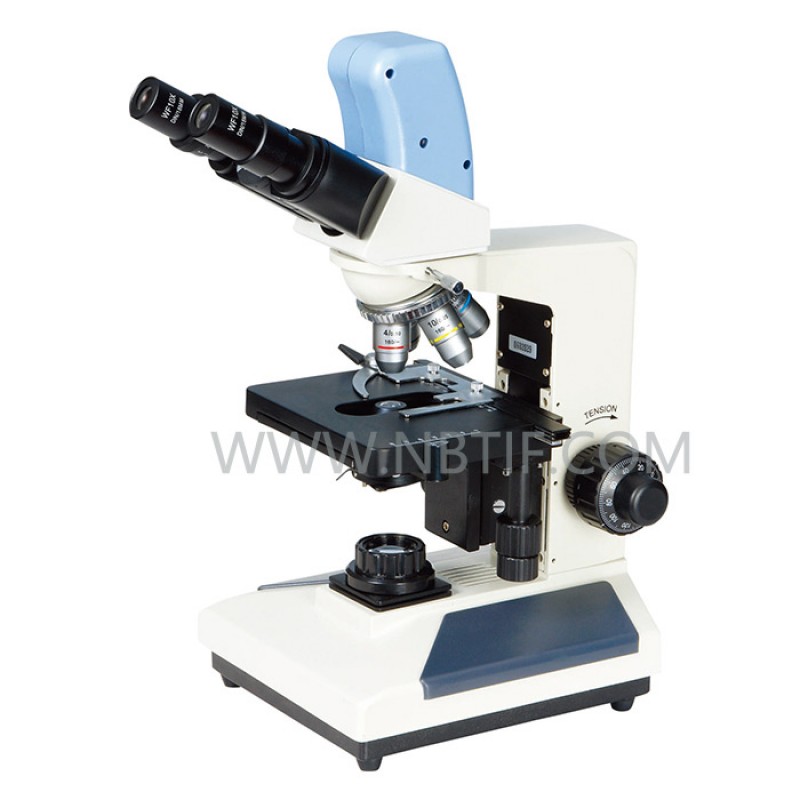

Digital Microscope XSZ-120NS

The digital microscope is the innovation of microscope, it is broke through the functional highpoint of microscope and created a epoch in microscopy! Through redesigning the light path of microscope, establishing the CMOS sensors into the trinocular tube of microscope head, receiving the image through CMOS, then sent to the computer in the form of digital signal, and reproduced the image in real on the computer monitor. Digital technology applied in microscopes, brought the much wider application of the microscope. The specially developed image measurement software of digital microscope makes the image clear at a glance for the users. The displayed image on the computer monitor is increased hundred or thousand times than the image you see in the eyepiece, and this makes the observation of the specimens much clearer and more convenient.

Specification


Viewing Head
Compensation Free 1.3 Mage pixels CMOS Digital Binocular Head, Inclined
at 30°(55mm-75mm)

Eyepiece
WF10×/18mm

Objective
Achromatic Objectives 4×10×40 ×(s)100×(s)Oil

Condenser
N.A.1.25 Abbe Condenser with iris diaphragm&filters

Focusing
Coaxial coarse & fine focusing adjustment Fine focusing scale value
0.002mm

Collector
High brightness stationary illumination

Light Source
Halogen Bulb 6V20W. AC85V-230V Adjustable brightness

Compact disc
Driver software(suitable for Windows XP/Vista)
Professional software for  digital microscope(Image preiew, Measurement,
Image process) Operation Manual for installing drover and software

Optional Accessory
Eyepiece:WF16×、WF20×Pbjectives:20×、60(s)、Plan
Objectives:4×10× 20× 40×(s)60×(s)100×(s)Oil、Infinity Plan
Objectives:4×10× 20× 40×(s)60×(s)100×(s)Oil、
2.0Mega、3.0 Mega、5.0 Mega pixels COMS Digitial camera eyepiece
Compensation Free Binocular & Trinocular Head(48mm-75mm)
