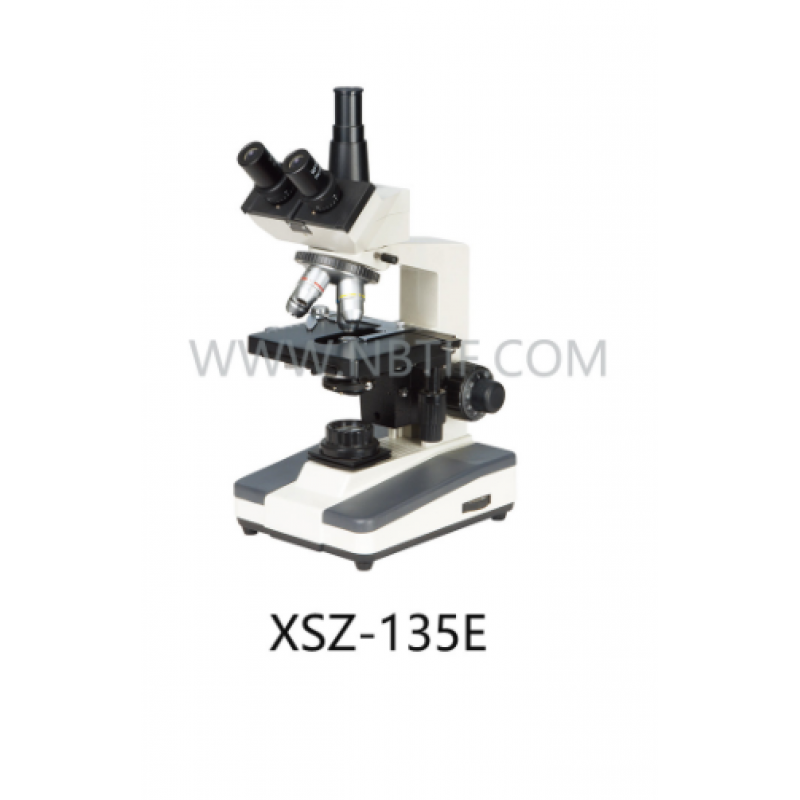

Biological Microscope XSZ-135E


Specification


Viewing Head

Sliding Trinoculaar Head, Inclined at 45°(55mm-75mm)

Eyepiece
WF10×/18mm


Objective
Achromatic 4×、10×、40×(s)、100×(s)Oil


Stage
Double layer mechanical stage


Stage Sixe:140mm×140mm
Moving Range:70mm×50mm
Condenser
N.A.1.25 Abbe condenser with iris diaphragm and filter


Fcusing
Coaxial coarse & fine focusing adjustmen Fine focusing
scale value 0.002mm


Light Source
Halogen bulb 6V20W or 6V15W, AC 220V/110V


Adjustable light source with Kohler illumination
Optional Accessory
Eyepiece:WF16×、WF20×、P16×
Objective:20×、60(s)
Semi-plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil
Plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil
Reflective Mirror, Demonstration(Teaching) HeadDark field and Phase contrast device
1.3Mega、2.0Mega、3.0Mega、5.0Mega pixels CMOS Digital camera eyepiece
Photography attchment and CCD Adapter 0.5×、0.57×、0.75×
Compensation Free Binocular & Trinocular Head (48mm-75mm)
LED illumination
