LED Cursor(Pointer)
In order to make the intercourse convenient between teacher and students, the microscope is equipped with LED cursor pointer to indicate image in the microscope viewing field, the pointer is Arrow type, and light intensity adjustable button is also eqipped. The pointer can be moved freely and any position of the image can be indicated.
Specificaon | |||
Viewing Head | Dual viewing Compensation Free binocular head(55mm-75mm) | ||
Eyepiece | WF10×/22mm | ||
Objective | Infinity Achromatic 4×、10×、40×(s)、100×(s)Oil | ||
Stage | Double layer mechanical stage Stage Sixe:180mm×150mm Moving Range:75mm×50mm | ||
Condenser | N.A.1.25 Abbe condenser with iris diaphragm and filter | ||
Fcusing | Coaxial coarse & fine focusing adjustmen Fine focusing scale value 0.002mm | ||
Light Source | Halogen bulb 6V/20W, AC 220V/110V Fine focusing scale value 0.002mm | ||
Optional Accessory | Eyepiece：WF16×、WF20×、P16× Objective：20×、60(s)Infinity Semi-plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s) oilInfinity Plan Achromatic Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil Phase Contrast Attachment Photography attchment and CCD Adapter 0.5×、0.57×、0.75× Compensation Free Binocular Head(48mm-75mm) | ||

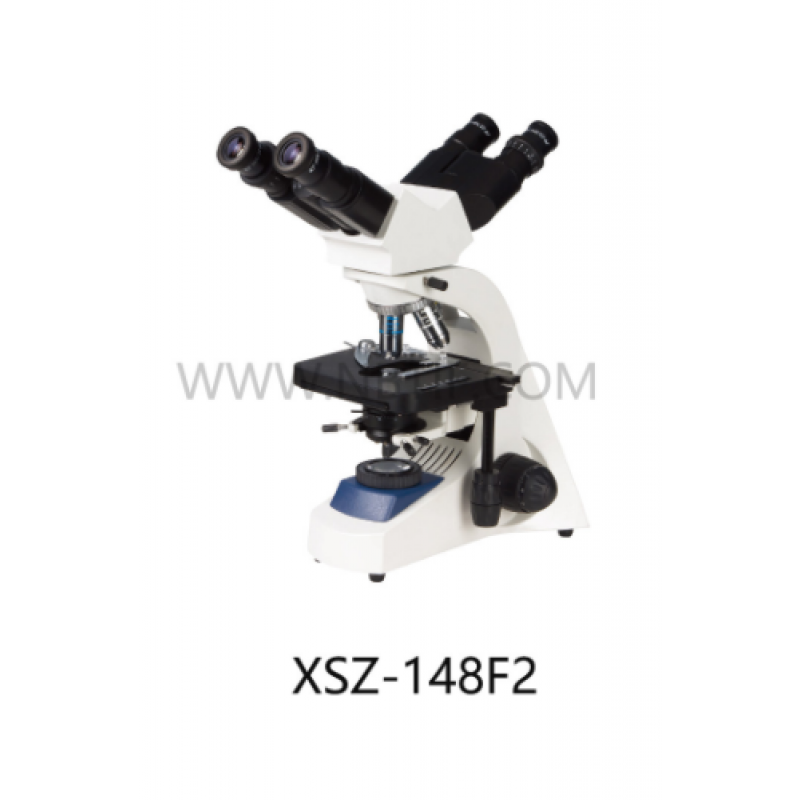

Biological Microscope XSZ-148F2
