This equipment can be used in observation, analysis and research of Metallurgy, Mineral, Crystal, Micro-electronics and it is the first choice for the factories, universities, research institutions and electronic industry. It is adopted 2 kinds of illumination of reflection and transmission and also equipped with Epi-illumination Polarization devices. Under the reflected light, it can proceed Bright field and Polarizing observation. And it can also proceed Bright field observation under transmitted illumination. Stable, high-quality optical systems meet your requirement of high image quality, square-built body represents more rigid, T-shaped design gives you a more stable base. Humanized configuration design and convenient operation, Let you release form the pressure of heavy work. Let you devote experiment with entire energy.
Specification
Viewing Head | Compensation Free Binocular Head Inclined at 30°(48mm-75mm) | |
Eyepiece | Super wide field WF10×/22mm | |
Stage | Double layer mechanical stage Stage Size:180mm×160mm Moving Range:80mm×50mm | |
Condenser | N.A.1.25 Abbe Condenser with irisdiaphragm &filter | |
Focusing | Coaxial coarse &fine focusing adjustment With rack and opinion mechanism.Fine focusing scale value 0.002mm | |
Light Source | Epi-Kohler illumination with aperture iris diaphragm and Field iris diaphragm,12V/30W.AC85V230V Adjustable Brightness Transmission illumination 12V/30W.AC85V230V Adjustable Brightness | |
Polarizing Device | Analyzer rotatable360,°Polarizer & Analyzer can be moved in/out of the optical path | |
Filter | Flashboard type filters(green ,blue neutral) | |
Checking Tool | 0.01mm Micrometer | |

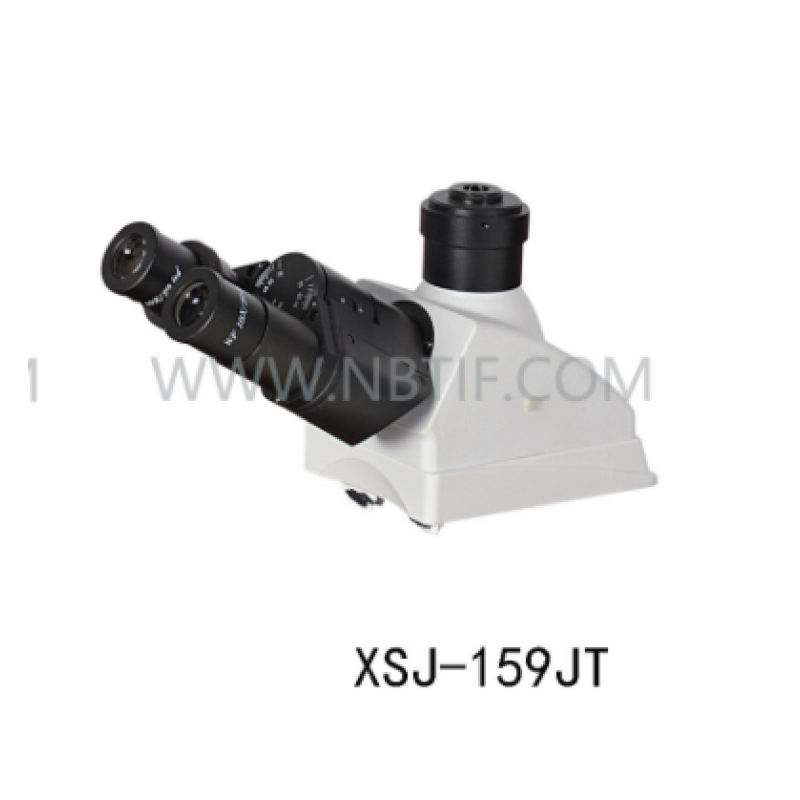

Optional Accessory | Positive compensation free trinocular head,inclined at 30° Two dimensional(2D) measuring software micrometer eyepiece 1.3Mega、2.0 Mega、3.0 Mega,5.0 Mega pixels CMOS Digital camera eyepiece Photography attachmentand CCD Adapter 0.5×、0.57×、0.75× Infinity Plan metallurgical objective: 50×/0.55W.D.5.1mm,80×/0.75W.D.4mm、100×/0.8W.D.3mm |
