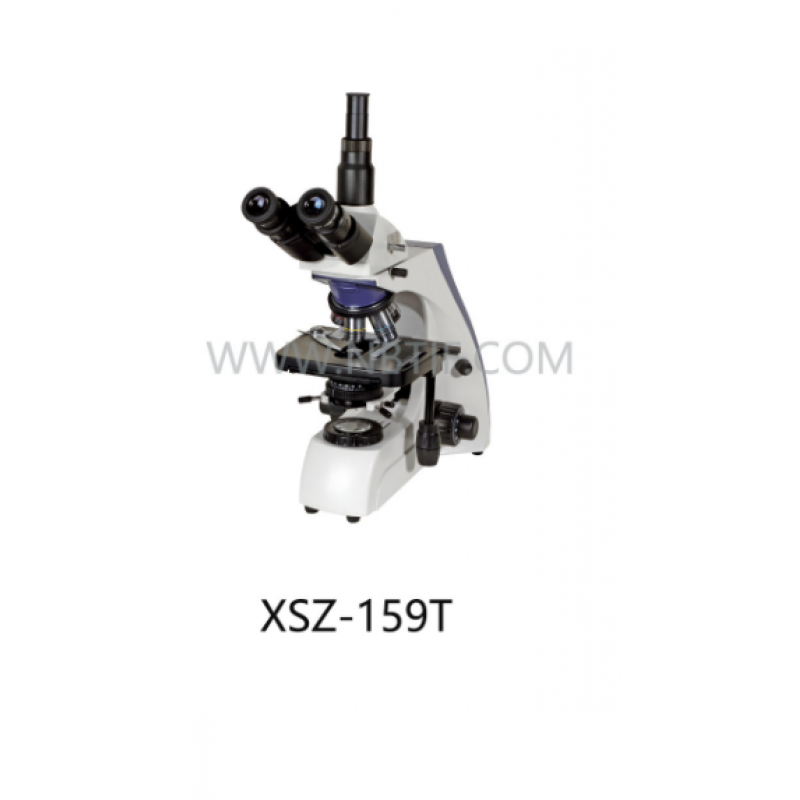

Biological Microscope XSZ-159T

High efficiency,flexibility and stability are the characters of this series microscope.It is specially developed for various application fields.It is widely used,from daily work to scientific research,in laboratory,hospital and college.Because of higher cost performance and reasonable humanized design,it becomes the first choice of individual,hospital and scientific research organization.

Specification



Viewing head


Compensation free binocular head,inclined at 30°(48mm-75mm)

Eyepiece
WF10×/22mm


Objective
infinite Semi-Plan objective:4×,10×,40×(s),100×ion(s)Oil


Stage
Double layers mechanical stage


Stage Size:180mm×160mm


Moving Range:80mm×50mm


Condenser
N.A.1.25Abbe condenser with iris diaphragm & filter holder


Focusing
Coaxial coarse & fine focusing adjustment with rack and pinion  mechanism , fine focusing scale value0.002mm


Light Source

Halogen bulb 12V30W. AC85V-230V

Adjustable brightness



Collector
High brightness Kohler illumination


Optional

Accessory

Eyepiece:WF16×、WF20×、P16×

and 3.0Mega CMOS Digital camera eyepiece

infinite Semi-Plan objective:20×(s)、60×(s)、

infinite Plan Objective:4×、10× 、20× 、40×(s)、60×(s)、100×(s)Oil

Light Source:LED,Adjustable brightness

Phase contrast attachment

Photography attachment and CCD C-mount:0.5X、0.57X、0.75X、1X

1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega

pixels CMOS Digital camera eyepiece

CCD Camera,colur 1/3 High resolution 700 TV lines

Features:

  • Wide-field eyepiece,high light illumination and superior optical components make the image clear,sharp and high brightness;
  • Backward nosepiece with superior objectives make the better viewing effect and more space for operators;
  • Wide mechanical stage with double specimen holder provides more convenient for the observers;
  • High precision focusing adjustment system and humanized configuration design provide operator more relaxing
