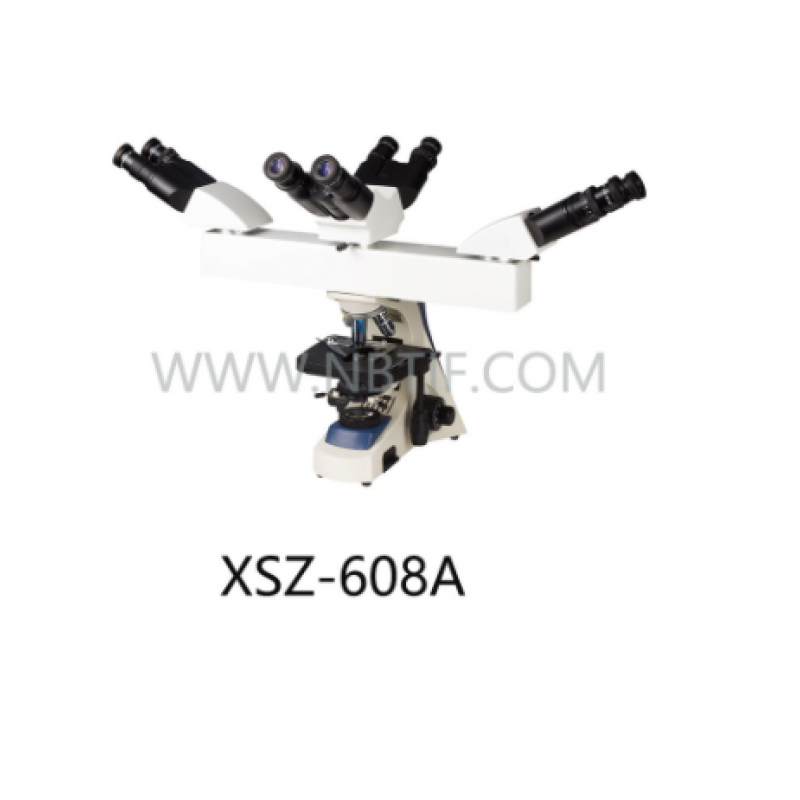

This series microscipe is designed for several people to observe one specimen together at the same time. It has infinity imaging system, high light illumination system and provide sharp & clear image. Particularly, it is suitable for discussion application in Clinic, Research and Teaching.
Specification | |||
Viewing Head | |||
Compensation Free Free Binocular Head,Inclined at 30°4- Teaching binocular head （55mm-75mm） | |||
Eyepiece | WF10×/22mm | ||
Objective | Infinity Achromatic Objective;4×10×40×(s)100×(s)Oil | ||
Stage | Double layer mechanical stage | ||
| Stage Sixe:180mm×150mm | |||
| Moving Range:75mm×50mm | |||
Condenser | N.A.1.25 Abbe condenser with iris diaphragm and filter | ||
Focusing | Coaxial coarse & fine focusing adjustmen Fine focusing scale value 0.002mm | ||
Light Source | Halogen Bulb 12V30W. AC85V-230V Adjustable brightness | ||
Illuminator | High-light Kohler illumination | ||
Optional Accessory | Eyepiece：WF16×、WF20×、 Infinity Plan Objectives：20×、60 (s)、 INFINITY Plan Achromatic Objectives:4×10× 20× 40×(s)60×(s)100×(s)Oil Other model base frame is available Compensation Free Binocular & Trinocular Head（48mm-75mm） LED cursor(Pointer) | ||
Biological Microscope XSZ-608A
- Views: 420
-
Ningbo HuaSheng Precision Technology Co Ltd - Vendor Type: Manufacturer, Distributor, Supplier, Exporter
- Product Code: XSPHDS0064
- Availability: In Stock
- ₹0
Seller information
Ningbo Huasheng Precision Techno
- Ningbo Huasheng Precision Technology Co Ltd
- Ningbo, China
- Business Type :Manufacturer, Exporter
