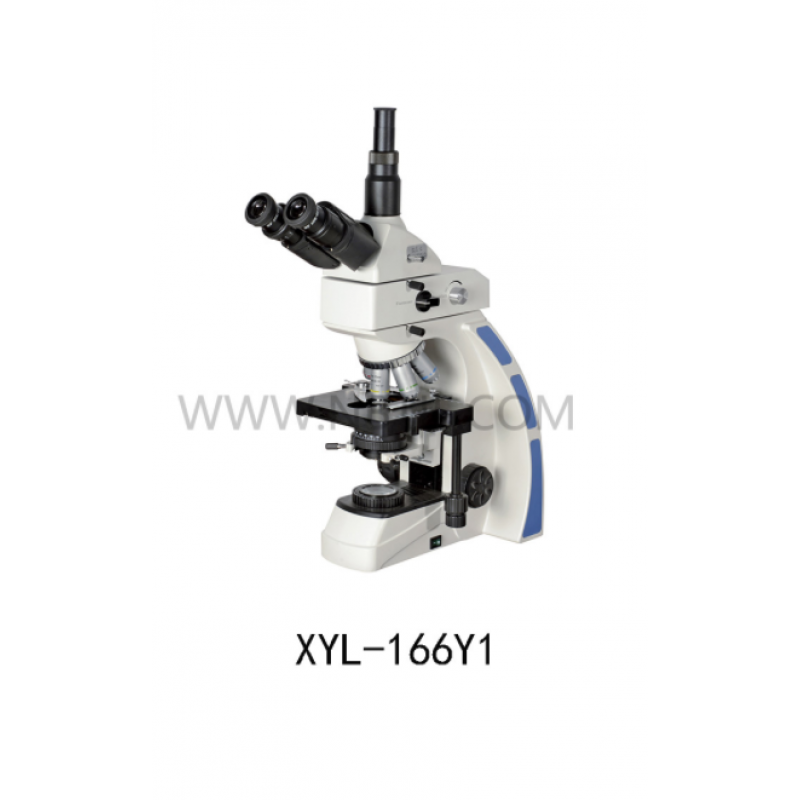

XYL-166Y LED fluorescent microscope is widely used in biology,iatrology,immunology,oncology,genetics,material science,etc.It can also proceed general transmission view.Excellent infinite optical system makes the fluorescent image clearly.LED bulb can work up to 20000 hours.It also has several high efficient fluorescent wave bands for selection,suitable for different fluorescent application.
Specification
Eyepiece | Wide field Plan WF10X/22mm | ||||||
Fluorescent | attachment | B Wave band | |||||
Viewing Head | Compensation Free trinocular Head inclined at 30° interpupillary distance adjustable 48mm-75mm | ||||||
Objective |
infinite Plan objective 4X0.10 、 10X/0.25、 40X/0.65、 100X/1.25 Oil | ||||||
Nosepiece | Quadruple nosepiece | ||||||
Stage | Double layers mechanical stage Stage size: 180mmX 160mm Moving range : 80mmX 50mm | ||||||
Focusing |
Coaxial coarse & fine focusing adjustment,fine focusing scale value 0.002mm | ||||||
Optical system | infinite optical system |
| |||||
Optional Accessory | Eyepiece: WF15X/17mm,WF20X/12.5mm objective:infinite Plan large N.A fluorescent objectives 4X/0.15、10X/0.35、20X/0.60、40X/0.75、100X/0.90(Dry) Photography attachment and CCD C-mount:0.5X、0.57X、0.75X 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels CMOS Digital camera eyepiece CCD Camera,colour 1/3 High resolution 700 TV lines Image analysis software Fluorescent digital CCD G、V、UVWave band | ||||||
Light Source | Epi-fluorescent illumination LED 3V/5W,AC85V-230V,brightness adjustment Transmission illumination Kohler illumination with aperture iris diaphragm and field iris diaphragm Halogen Bulb 12V/100W,AC85V-230V Brightness adjustable |
