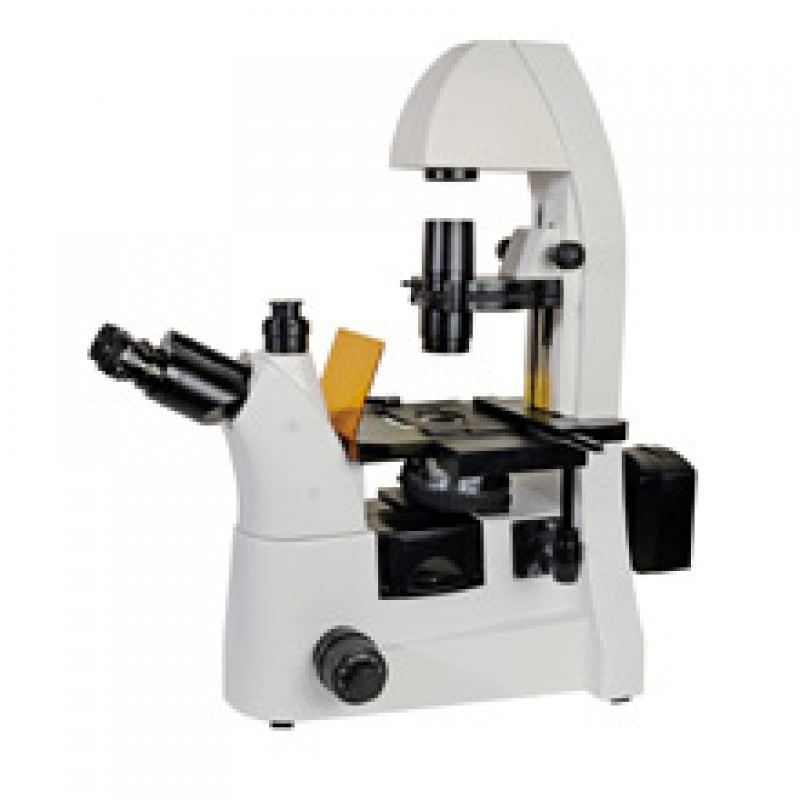

Fluorescence Microscope XYL-412Y

XYL-412Y inverted five wave bands fluorescent microscope is composed of inverted microscope and Epi-fluorscent microscope.The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish.Epi-fluorescent device applies to the fluorescent microscopy.It is equipped with infinite long working distance big numeral aperture Plan Apochromatic objective,phase contrast kit and phase contrast objectives.The transparent alive objects can be observed without dyeing.Epi-fluorescent microscope adopts LED excitation which controlled by touch screen to make fluorescent image clear.Long working distance condenser can contain higher culture dish and specimen.This equipment is specially suitable for micro research of living cells and organization,fluidness and sediment.It is an ideal equipment for researching treatment,epidemic prevention and farming,stock raising & forestry department,etc.


Specification:


Optical system
infinite optical system
viewing head


Compensation Free Trinocular Head Inclined at 45°

(50mm-75mm)


Eyepiece

PlanWF10×/22mm


Objective


infinite L.W.D.big numerial aperture plan

appochromatic objective

4×/0.15(L.W.D.21.6mm) ,cover-glass thickness 1.5mm

10×/0.3(L.W.D.3mm),cover-glass thickness 1.5mm

20×/0.5(L.W.D.4.27mm),cover-glass thickness 1.5mm

40×(S) /0.6(L.W.D.2.23mm),cover-glass thickness 1.5mm


Nosepiece

Sextuple Nosepiece


Stage


Double layer mechanical stage

Stage Size:242mm×172mm

Moving Range :75mm×40mm

Low located XY adjusting hand wheel


Focusing


Coaxial coarse & fine focusing adjustment,fine focusing scale value 0.001mm


Light Source


Transmission illumination

Halogen Bulb 12V/30W,AC85V-230V,

brightness adjustable

Epi-Fluorescent illumination

Five wave bands LED source controlled

by touch screen,LED 8W,

AC85V-230V,brightness adjustable


Fluorescence attachment
G、B、BV、V、UV

Condense

Abbe condenser,working distance28mm
