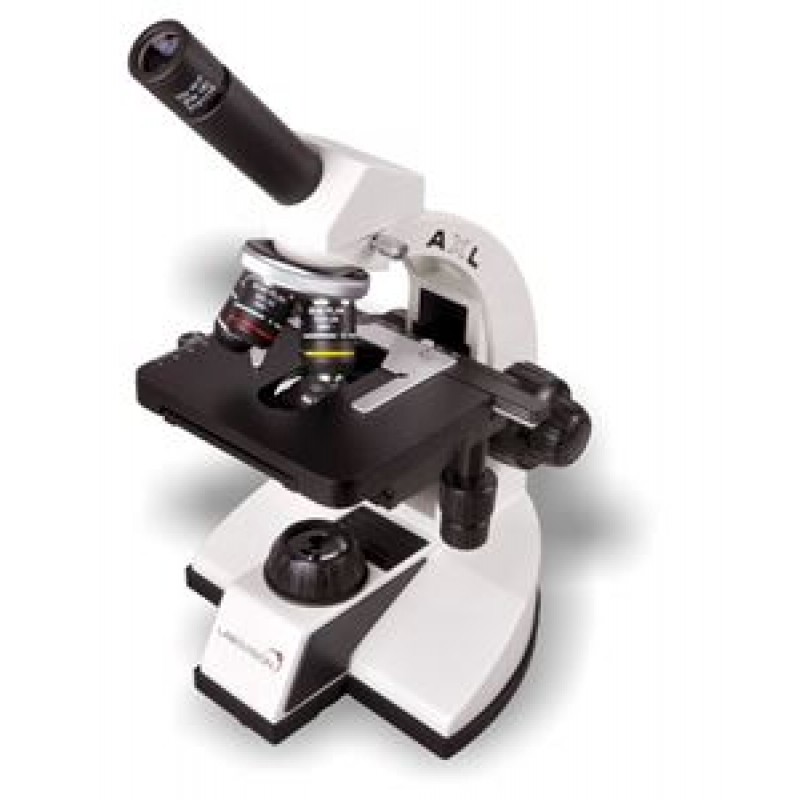

The AXL reflects a friendly design suitable for both the classroom and laboratory environment. Embodied with a sturdy C-shaped aluminium die-cast stand, high quality optics and optical coatings, and brass gears, all of which pose the AXL to resist the toughest of user environments.
SPECIFICATION
STAND | C shaped, corrosion resistant, Anti mould treated stand with modular base |
EYEPIECES | WF10X/18mm with Eye-guards. Anti Mould Treated. Optional WF15x/16mm, WF20x/12mm |
VIEWING BODY | Monocular inclined tube, inclined at 45° rotatable through 360°. Anti fungus treated |
FOCUSING | COAXIAL coarse & fine focusing mechanism, with tension control ring. Ergonomically designed for easy grip, esp. for tension control. |
NOSEPIECE | Low friction & fully Parfocal Quadruple Revolving nosepiece (Ball bearing type) |
MECHANICAL STAGE | Double layer graduated mechanical rectangular stage size 142 x 133mm cross travel 54 x 76 mm on ball bearingco-axial controls spring clip double specimen holder |
ILLUMINATION | Built-in halogen lamp, 6V-20W, with intensity control regulator for luminous field. Optional Super Bright White LED with intensity control regulator. |
OBJECTIVES | Semi Plan / Full Plan Achromats, Anti Mould Treated |
CONDENSER | Moveable ABBE Condenser centrable, NA 1.25 with aspheric lens. Iris diaphragm special day light blue filter in holder |
OPTIONAL ACCESSORIES | Polarizing, Phase Contrast, Dark Field Attachments , CCD & CMOS Camera Modules, Plano Concave Reflector Mirror, Objectives DIN Semi Plan & Plan 20X, 60x. |
BJ Semi Plan | 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, Optional 100x/NA 1.25 SL, Oil |
FP PLAN | 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil |
POWER | Power Supply 220V AC. |
