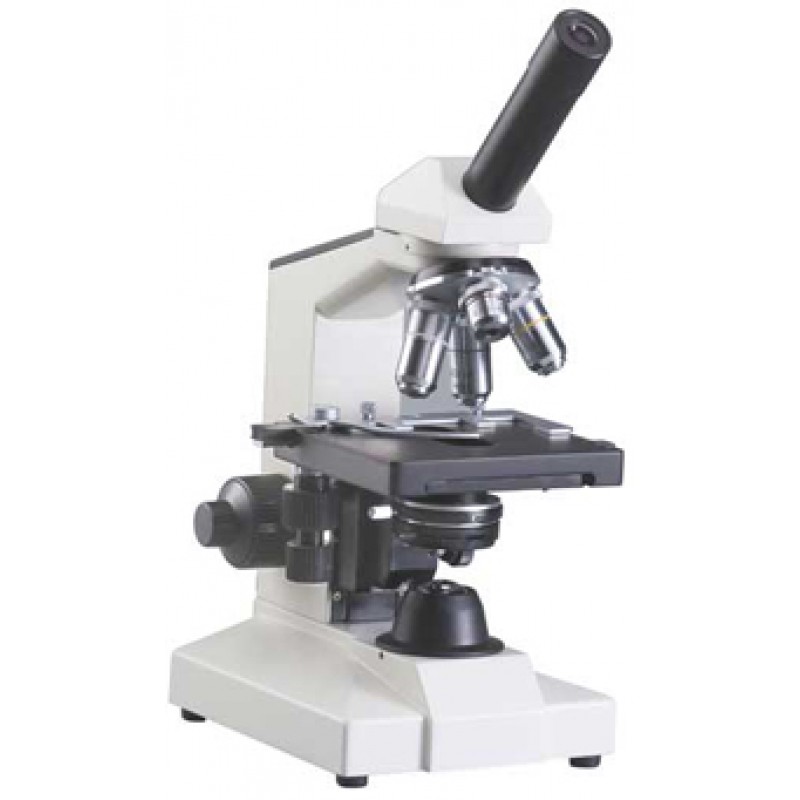

Inclined Monocular Microscope Model Student

BIO GENE™ Student Microscopes are effectively used in industries, quality control, pharma, textile, gem, automobile, engineering, universities, colleges and research Institutes.


BODY Consturction of Monocular Student Microscope

  • Co-axial focusing system.
  • Quadruple nosepiece.
  • Mechanical stage size 120mm X 120mm having low positioned co-axial controls on ball bearing.Cross movement 55mm X 75mm.
  • Built-in-base illumination system with 15V-220W tungsten bulb.

  • SUB STAGE CONDENSER Abbe Condenser N.A.1.25 swing out filter holder, Iris Diaphragm.
  • MONOCULAR head of Monocular Student Microscope
  • Monocular head inclined at 45° rotatable at 360°.
  • EYEPIECE Wide 10X FOV 18mm


STANDARD ACCESSORIES

  • Tungsten lamp, Blue & Grey filter, STYRO FOAM Molded pack.


OBJECTIVES(FINITE)

  • DIN Achromatic 4X DIN Achromatic 10X
  • DIN Achromatic 40X(S L)
  • DIN Achromatic 100X Oil(S L)


Write a review

Note: HTML is not translated!
    Bad           Good

Inclined Monocular Microscope Model Student

  • ₹0

Seller information

  • Biotechnologies Inc

  • Biotechnologies Inc
  • New Delhi, India
View profile
Please sign in to contact Biotechnologies Inc

Tags: Microscopes
