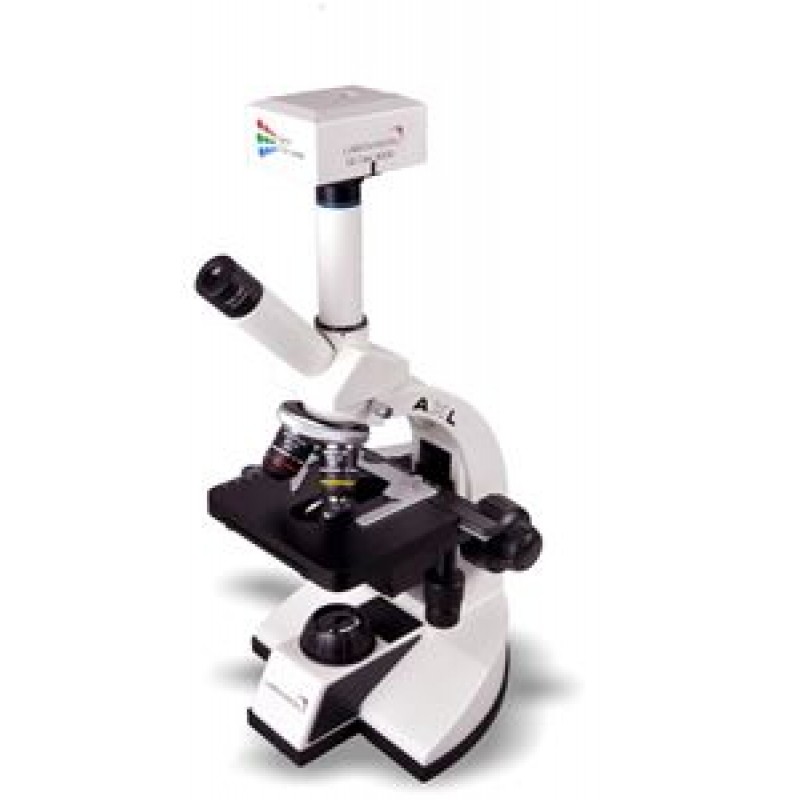

The LABOVISIONTM DG EDU LAB comprises of a Dual View Monocular Microscope with built-in 1.3 MP digital camera specially made for a high value classroom and pre-clinical research environments. The Microscope transmits live streaming images to your computer. With the included software you can view and capture images directly onto your computer screen.
SPECIFICATION
STAND | C shaped, corrosion resistant, Anti mould treated stand with modular base | |
EYEPIECES | WF10X/18mm with Eye-guards. Anti Mould Treated. Optional WF15x/16mm, WF20x/12mm | |
VIEWING BODY | Dual Monocular Head with Inbuilt 1.3 MP Colour Digital Camera , Valid Pixel : 1280×1024 and necessary capturing software. USB Connectivity for Camera, with operating system 98/XP/Vista. Image File Format : BMP, JPEG | . |
FOCUSING | COAXIAL coarse & fine focusing mechanism, with tension control ring. Ergonomically designed for easy grip, esp. for tension control. | |
NOSEPIECE | Low friction & fully Parfocal Quadruple Revolving nosepiece | |
STAGE | Fixed Stage size 120 x 120 mm with Spring Clips | |
ILLUMINATION | Illumination system Super Bright White LED lighting with intensity control. | |
OBJECTIVES | Semi Plan Achromats, Anti Mould Treated | |
CONDENSER | Fixed Abbe Condenser NA 0.65 with aperture Iris Diaphragm & Filter | |
Power | Power Input 110V- 220V AC. 50/60Hz |
BJ Semi Plan | 4x/NA 0.10, 10x/NA 0.25 & 40x/NA 0.65 SL |
