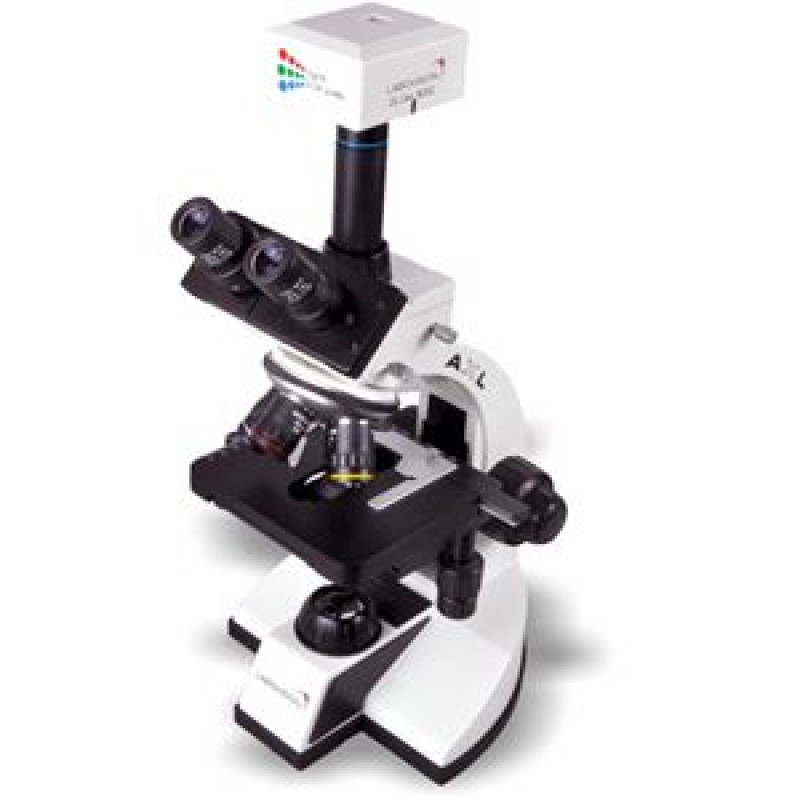

The LABOVISIONTM DG LAB comprises of a Trinocular Microscope with built-in 3.0 MP digital camera specially made for a high value classroom and pre-clinical research environments. The Microscope transmits live streaming images to your computer. With the included software you can view and capture images directly onto your computer screen.
SPECIFICATION
STAND | C shaped, corrosion resistant, Anti mould treated stand with modular base |
EYEPIECES | WF10X/18mm with Eye-guards. Anti Mould Treated. Optional WF15x/16mm |
VIEWING BODIES | Trinocular inclined tube, inclined at 45° rotatable through 360°. Anti fungus treated, IPD 55-75 mm and dioptric adjustment. with 1.3 DG Cam Module |
NOSEPIECE | Low friction & fully Parfocal Quadruple Revolving nosepiece (Ball bearing type) |
MECHANICAL STAGE | Double layer graduated mechanical rectangular stage size 142 x 133mm cross travel 54 x 76 mm on ball bearingco-axial controls spring clip double specimen holder |
ILLUMINATION | Built-in halogen lamp, 6V-20W, with intensity control regulator for luminous field. Optional Super Bright White LED with intensity control regulator & Battery Back up. |
OBJECTIVES | BJ Series DIN Semi Plan Achromats, Anti Mould Treated |
CONDENSER | Moveable ABBE Condenser centrable, NA 1.25 with aspheric lens. Iris diaphragm special day light blue filter in holder |
BJ Semi Plan | 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil |
IMAGE DEVICE | 1.3 Mega pixel Color CMOS sensor |
RESOLUTION | 1280×1024(1.3M Pixel) |
LIGHT SENSITIVITY | 1.0V/Lux-sec(550nm) |
INTERFACE | USB2.0 480Mb/s |
SOFTWARE | dgsoft ProMED ver 5.06 Image Analysis Software(Optional) |
SYSTEM REQUIREMENTS | CPU : Pentium IV or Higher, RAM : 512 MB or more, Hard Disk Space : 100 MB or more, Windows 98SE/ME/2000/XP, CD-Rom drive and USB 2.0 port |
