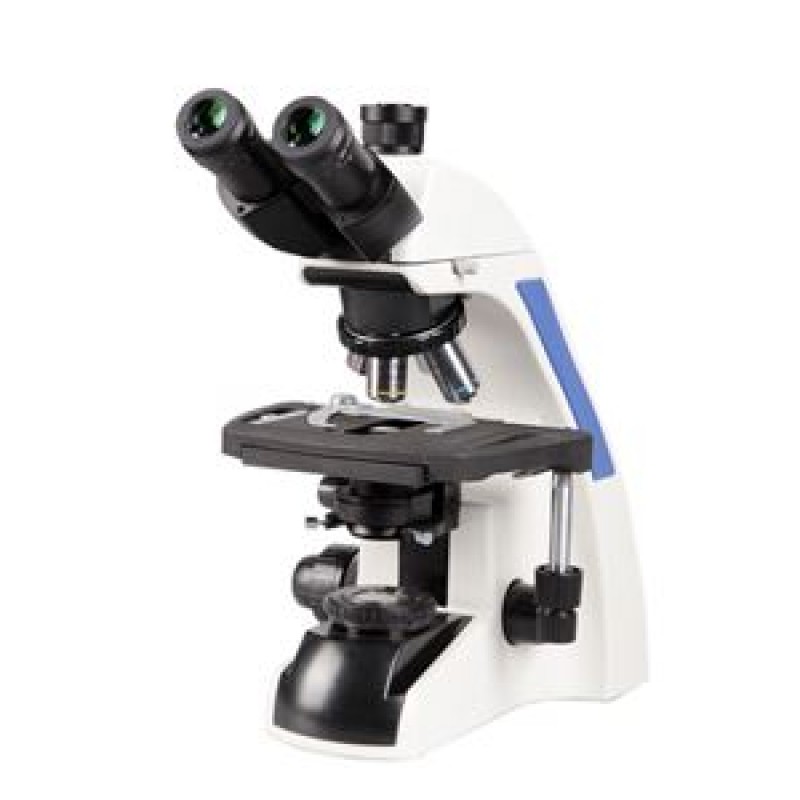

The LABOVISIONTM DG Sense i3000 is a Trinocular Microscope with a blend of Superb Optics, single-cast durable construction and a built-in 3.0 MP digital camera which is suited for versatile and fully extendable research microscopy. The built-in camera of the DG Sense i3000 boasts of the fastest frame rates, high definition image and exceptional quality of color reproduction. With the easy to use software and a friendly user interface you can view and capture images directly onto your computer without any discomfort.
SPECIFICATION
STAND | C shaped, Single Mould corrosion resistant, Anti mould treated stand with modular base |
VIEWING BODIES | 30° Inclined Siedentopf Binocular / Trinocular tubes, 360° rotatable with IPD 54-75 mm . Anti fungus treated |
NOSEPIECE | Quadruple, Revolving Inward Facing Nosepiece |
STAGE | Double layer graduated mechanical rectangular stage size 140 x 132mm cross travel 75(X) x 50(Y) mm, double specimen holder |
ILLUMINATION | Koehler Illumination, Super Bright White LED cold Light, Universal Power Supply 100 V to 240 V,AC 50-60 Hertz, CE Compliant. Optional 6V 20W Halogen Lamp |
OBJECTIVES | IP series Infinity DIN PLAN Achromatic, Anti fungus treated, 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL. 100x (Oil, SL). Optional 20x/ NA 0.40 SL, 60x/NA 0.85 SL |
CONDENSER | Movable ABBE condenser, with aspheric lens NA 1.25, daylight blue filter & Iris diaphragm. Centrable |
OPTICAL | Infinity Optical System |
IMAGE DEVICE | 3.0 Mega pixel Color CMOS sensor |
RESOLUTION | Effective pixels 2048(H) x 1536 (V) |
SENSITIVITY | 1V/lux-sec(550nm) |
DATA INTERFACE | USB2.0 480Mb/sUSB2.0 480Mb/s |
EXPOSURE CONTROL | Auto exposure/Manual exposure/Area exposure |
SOFTWARE | dgsoft ProMED ver 5.06 Image Analysis Software (Optional) |
SYSTEM REQUIREMENTS | CPU : Pentium IV or Higher, RAM : 2 GB or more, Hard Disk Space : 50 GB or more, Windows XP(32/64-bit); Win7(32/64-bit), CD-Rom drive and USB 2.0 port Monitor : 17’’ or More High Resolution monitor |
