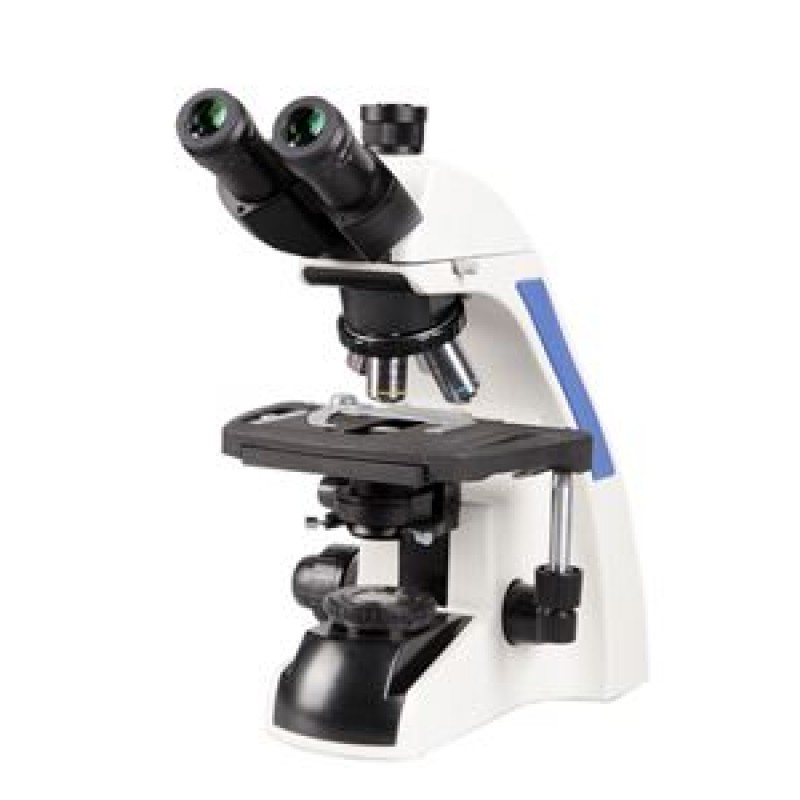

DIGITAL MICROSCOPE DG Sense i5000
Click Image for Gallery
DIGITAL MICROSCOPE DG Sense i5000

The LABOVISIONTM DG Sense i5000 is a Trinocular Microscope with a blend of Superb Optics, single-cast durable construction and a built-in 5.0 MP digital camera which is suited for versatile and fully extendable research microscopy. The built-in camera of the DG Sense i5000 boasts of the fastest frame rates, high definition image and exceptional quality of color reproduction. With the easy to use software and a friendly user interface you can view and capture images directly onto your computer without any discomfort.

SPECIFICATION


EYEPIECES
WF 10X/20mm with Dipoter Adjusment. Anti fungus treated. Optional WF 15x mm

STAND
C shaped, Single Mould corrosion resistant, Anti mould treated stand with modular base
VIEWING BODIES
30° Inclined Siedentopf Binocular / Trinocular tubes, 360° rotatable with IPD 54-75 mm.
NOSEPIECE
Quadruple, Revolving Inward Facing Nosepiece
STAGE
Double layer graduated mechanical rectangular stage size 140 x 132mm cross travel 75(X) x 50(Y) mm, double specimen holder
ILLUMINATION
Koehler Illumination, Super Bright White LED cold Light, Universal Power Supply 100 V to 240 V,AC 50-60 Hertz, CE Compliant. Optional 6V 20W Halogen Lamp
OBJECTIVES
IP series Infinity DIN PLAN Achromatic, Anti fungus treated, 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL. 100x (Oil, SL). Optional 20x/ NA 0.40 SL, 60x/NA 0.85 SL
CONDENSER
Movable ABBE condenser, with aspheric lens NA 1.25, daylight blue filter & Iris diaphragm. Centrable
OPTICAL
Infinity Optical System
IMAGE DEVICE
5.0 Mega pixel Color CMOS sensor
RESOLUTION
Effective pixels 2592*1944
LIGHT SENSITIVITY
1.76V/Lux-sec(550nm)
INTERFACE
USB2.0 480Mb/s
SOFTWARE
dgsoft ProMED ver 5.06 Image Analysis Software (Optional)
SYSTEM REQUIREMENTS
CPU : Pentium IV or Higher, RAM : 2 GB or more, Hard Disk Space : 50 GB or more, Windows XP(32/64-bit); Win7(32/64-bit), CD-Rom drive and USB 2.0 port Monitor : 17’’ or More High Resolution monitor
