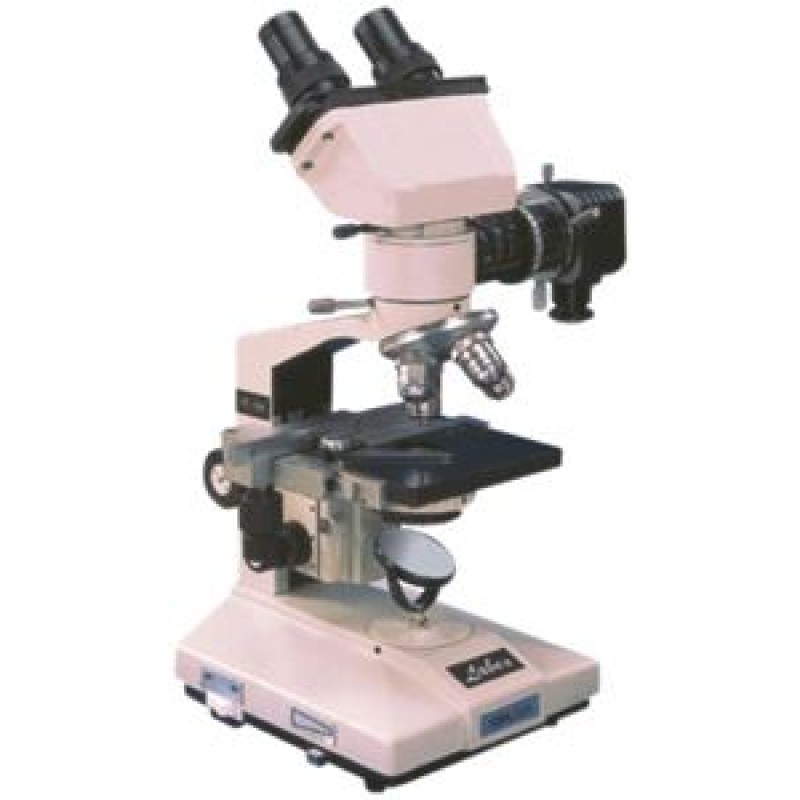

The LABOVISION FE 10M metallurgical microscope provides a versatile solution with powerful illumination technology. Experience ease-of-use with improved surface inspection details, ergonomic design, intuitive controls and high quality objectives.
SPECIFICATION
STAND | Stable Corrosion resistant stand, Anti mould treated stand with modular base having an upright configuration | |
EYEPIECES | HKW 10x, WF 15x (Paired) | |
VIEWING HEAD | Trinocular Observation head, with interpupillary & dioptric adjustments and provision for adapting Microphotography & Projection System | |
FOCUSING MODULE | Ergonomic low position co-axial and fine focusing system on ball bearing guideways | |
STAGE | Compact size mechanical stage, for convenient specimen scanning | |
ILLUMINATION | Epi-Illumination, 6V,20W,halogen lamp with on/off switch , light intensity regulator and Plano Concave Reflector Mirror, with inbuilt solid state transformer 220V,50Hz, AC supply | |
OBJECTIVES | High Contrast Din Objectives , Parfocal Achromatic, M10x,M20x,M40x & Optional M60x |
PACKING | Packed in carrying case |
OPTIONAL ACCESSORIES | Polarizing Kit, Video Adapter for use with for camera, Graticule Size Eyepiece, Measuring Eyepiece, Image Analysis Software |
MAGNIFICATION | 100x-600x |
