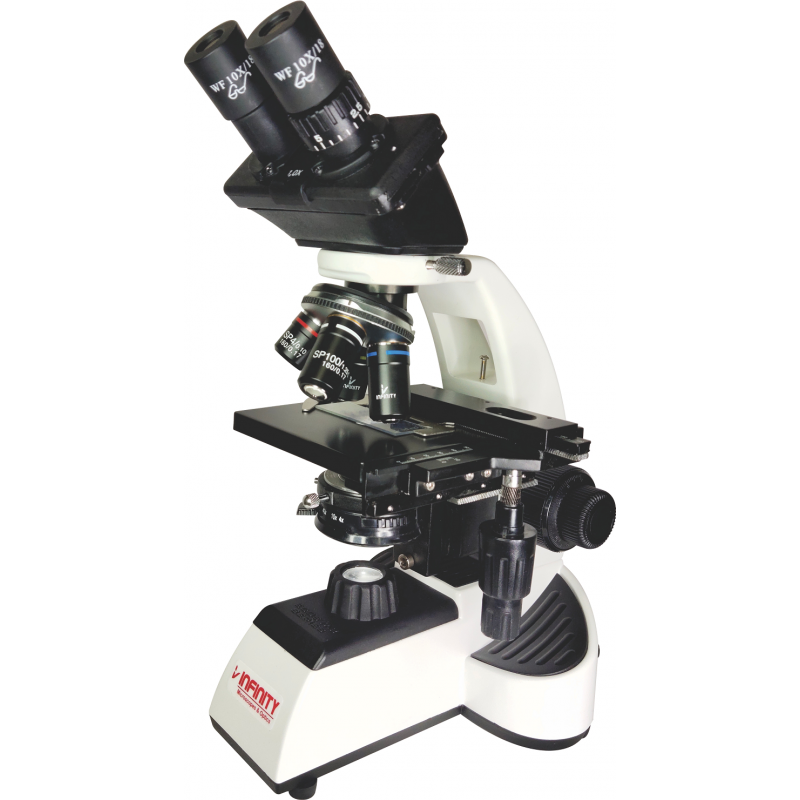

Stand: Sturdy stand with anti-rust materials. Ergonomic base forhand rest and enhanced Stability.Viewing Body: Sliding Binocular or Trinocular head, 45° inclined,360° rotatable, with adjustable viewing height up to 40mm, IPD55 - 75mmEyepieces: Wide field 10x/18mm, lockable, antifungalNosepiece: Precised quadruple nosepiece (Ball bearing type) withclick stops and rubber grip.Objectives: High performance Semi-Plan Achromat DIN objectives4x, 10x, 40x (spring loaded), 100x (spring loaded, oil),antifungalMechanical stage: Single plate stage 140 x 132mm, X-Y travelrange 90mm x 55mm with low-height controls. Hard coatedsurface for scratch resistance.Condenser: Sub stage Abbe condenser NA 1.25 with asphericlens. Iris diaphragm with blue daylight filter. Rack and pinionmovements on metal guides.Focusing: Coaxial coarse and fine focus on ball drive system forsmooth operationIllumination: Intensity controlled LED (up to 50,000 hours ofLED life) (optional 6V-20W Halogen illumination)Electronics: Universal input 100V - 240V AC, 50/60Hz. Built-involtage stabilizer.
