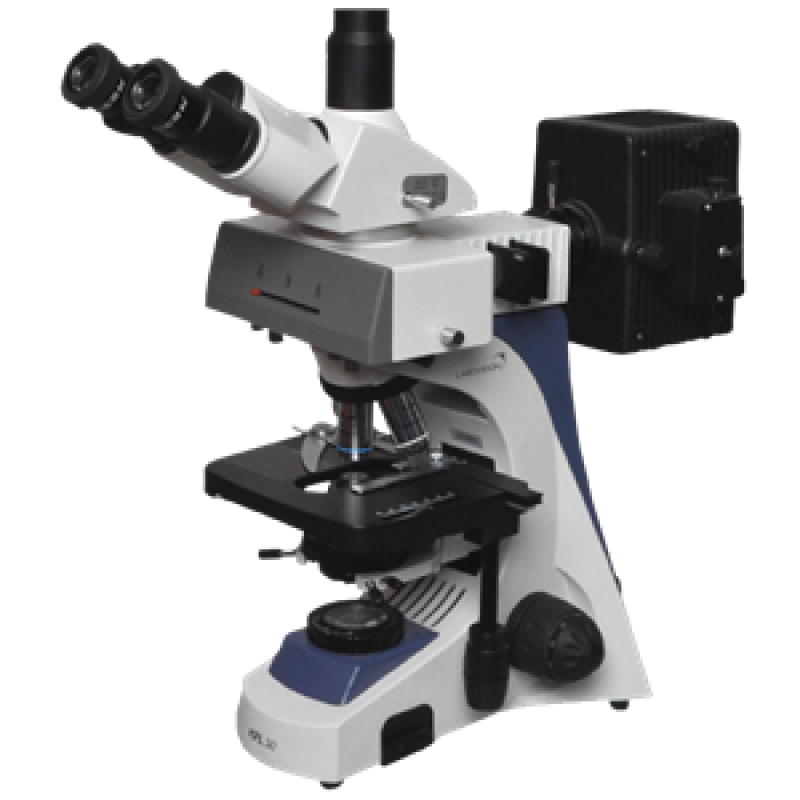

The LABOVISIONTM KFL 30 is a fluorescence microscope with a combination of features and benefits unmatched by competing products. With Increased Sensitivity compared to regular microscopes and time saving diagnostics bring forth the best of fluorescence microscopy to the users.
SPECIFICATION
STAND | C shaped, corrosion resistant, Anti mould treated, single mold modular stand |
EYEPIECES | WF 10X/22mm with Eye-guards, Anti Mould Treated. Optional WF 15x/16mm |
VIEWING BODY | 30° Inclined Siedentopf Binocular / Trinocular tubes, 360° rotatable with IPD 55-75 mm and dioptric adjustment |
FOCUSING | Ergonomic low position co-axial coarse and fine focusing system on ball bearing guide ways. Tension adjustment ring and unique Focus lock provided |
NOSEPIECE | Quintuple, Reversed (Inward Tilt) nosepiece, with rubber grip |
MECHANICAL STAGE | Double Plate 180mm×148mm. X-Y travel 76mm×50mm, spring clip Double Slide holder |
ILLUMINATION | Transmitted Koehler Illumination 6V-20W or 6V-30W Halogen lamp. Fluorescence Illumination : Super High-pressured spherical mercury vapor lamp 100W with universal power supply for input from 100V to 240V AC. CE Compliant |
OBJECTIVES | AFL Series, Infinity Corrected Fluorescent Plan Objectives, Anti Mould Treated, 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil |
CONDENSER | Movable ABBE condenser, with aspheric lens NA 1.25 & daylight blue filter with Iris diaphragm . Centrable |
OPTIONAL ACCESSORIES | Orange color plastic screen for protection against UV light, User manual, Power chord, Immersion oil, Spare fuses |
EXCITATION FILTER | Green Light (EX 545), Blue Light (EX 490) | |
COLOUR SEPERATION PRISM | Dm150 (Blue Light), DM580 (Green Light). Cut-off filter: BA-530 (Blue light), BA-590 (Green light) | |
