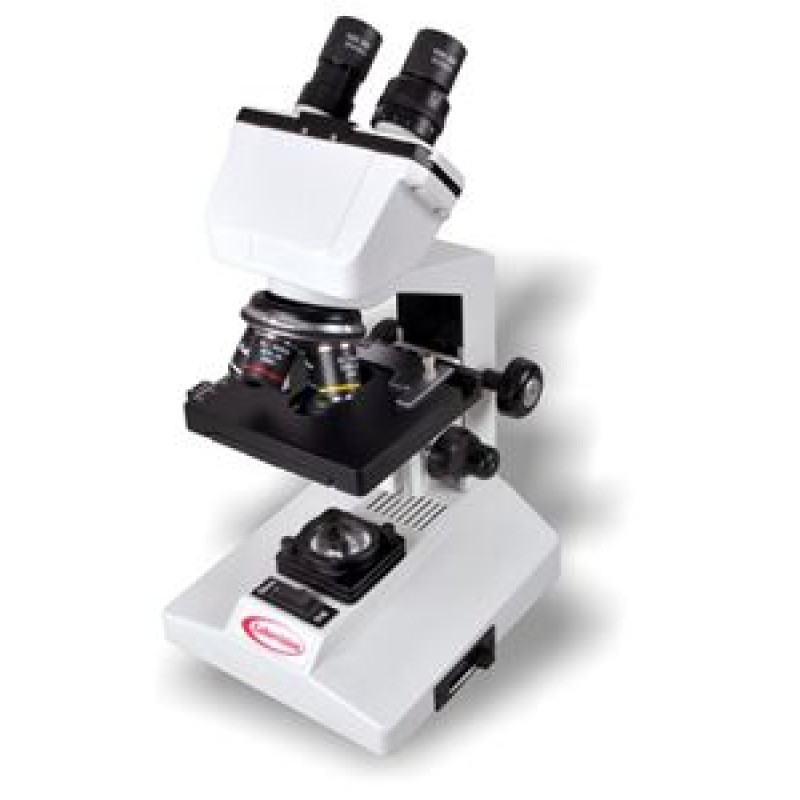

A binocular compound microscope with a 360 degree rotatable head. With best in class features, KL 10B is the most durable and reliable microscope for all sorts of user environments.
SPECIFICATION
STAND | Sturdy Stand, corrosion resistant, Anti mould treated stand with modular base |
EYEPIECES | Wide Field HKW 10X Paired, Anti Mould Treated, Optional WF 10X/18mm with Pointer WF 15x/16mm,WF 20x/12mm |
VIEWING BODY | Binocular Observation tube, inclined ar 45°, rotatable through 360° with IPD 54-74 mm with dioptric adjustment |
FOCUSING | Ergonomic Separate coarse and fine focusing mechanism with tension control |
NOSEPIECE | Quadruple, Revolving nosepiece |
MECHANICAL STAGE | Stage rectangular size 125 x 115mm with double plate mechanical stage cross travel 74 x 42mm with co-axial control |
ILLUMINATION | Illumination system 6V-20W Halogen with intensity control. Optional 12V-20W Halogen Lamp with intensity control. Power Input 220V AC. |
OBJECTIVES | VA series Semi Plan Achromatic, Anti Mould 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil. Optional 20x/ NA 0.40 SL, 60x/NA 0.85 SL |
CONDENSER | Movable ABBE condenser, with aspheric lens NA 1.25 & daylight blue filter |
OPTIONAL ACCESSORIES | Polarizing Kit, ½"Video Adapter for use with Dual View Tube, Plano Concave Reflector Mirror |
