The KX POL polarizing microscope generates the best results to investigate crystalline structures like minerals, plastics and polymers, drugs and pharmaceuticals, or pigments and cement. With LABOVISION’S KX POL polarization microscope you will see what interests you most as a researcher or in quality assurance.
SPECIFICATION
| STAND | C shaped, corrosion resistant, Anti mould treated stand with modular base |
| EYEPIECES | Wide Field eyepiece WF 10x/18mm paired, Micrometer Eyepiece WF 10x/18mm (10mm/100 parts X-Y) ,WF 10x/18mm with grid & WF 10x/18mm with crosshair. |
| BODY | 45° Inclined Binocular / Trinocular tubes, 360° rotatable with IPD 55-75 mm and dioptric adjustment |
| FOCUSING | Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Tension adjustment ring and Auto Focus provided |
| NOSEPIECE | Quadruple , Revolving nosepiece, Centerable |
| STAGE | 160 mm dia circular with graduations in 1° increments and vernier reading to 6'. Stage clips are provided to hold the specimen slide. Attachable Mechanical Stage |
| ILLUMINATION | 6V 30W Halogen Lamp, with Universal Power Supply 100 V to 240 V, AC 50-60 Hertz, CE Compliant. Mounted Daylight Blue Filter |
| OBJECTIVES | SF Series Achromatic POL “Strain Free” 4x/NA 0.10, 10x/NA 0.25, 25x/ NA 0.40 SL, 40x/NA 0.65 SL, 63x/NA 0.85 SL, Optional 100x/NA 1.25 SL, Oil. |
| POLARIZING KIT | Rotatable& Graduated Polarizer- Analyzer assembly with Bertrand lens, Compensator 147nm and 550nm, gypsum (λ), mica(1/4λ) sample, quartz wedge |
| OPTIONAL ACCESSORIES | CCD & CMOS Camera Modules, Adaptor for Camera, Image Analysis Software. |
| NOSEPIECE | Movable ABBE condenser, with aspheric lens NA 1.30 & mounted |

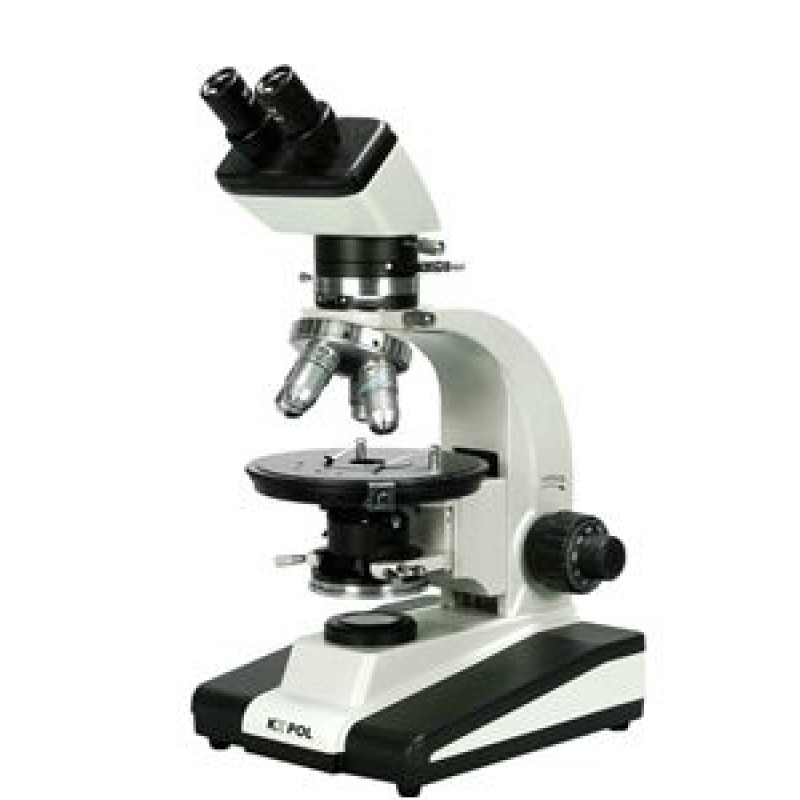

MATERIAL MICROSCOPE KX POL
- Views: 222
-
Labovision - Vendor Type: Manufacturer
- Product Code: L000000028
- Availability: In Stock
- ₹0
