Obstacle Detection Laser Sensor

Product Details :

Power source	18-30 VDC
Current consumption	250 MA
Detectable objects	White kent paper, 300mm( Placed in parallel with sensor projecting/receiving surface)
Detecting range	0.2 to 3x2m
2-scanning operation mode	Setting from PC for each detecting output of detecting area
Hysteresis	10% or less of detecting distance(Not smaller than 60mm)
Output	Photo-coupler/open-collector output(30VDC, 50mA)
Input	Photo-coupler input(Anode common, each input current 4mA or more), Changeover of setting area
Connection	Lead wire 1m long
Weight	500 GM
Protective structure	ip 64

PBS Series

Wide scanning angle, Super small size!

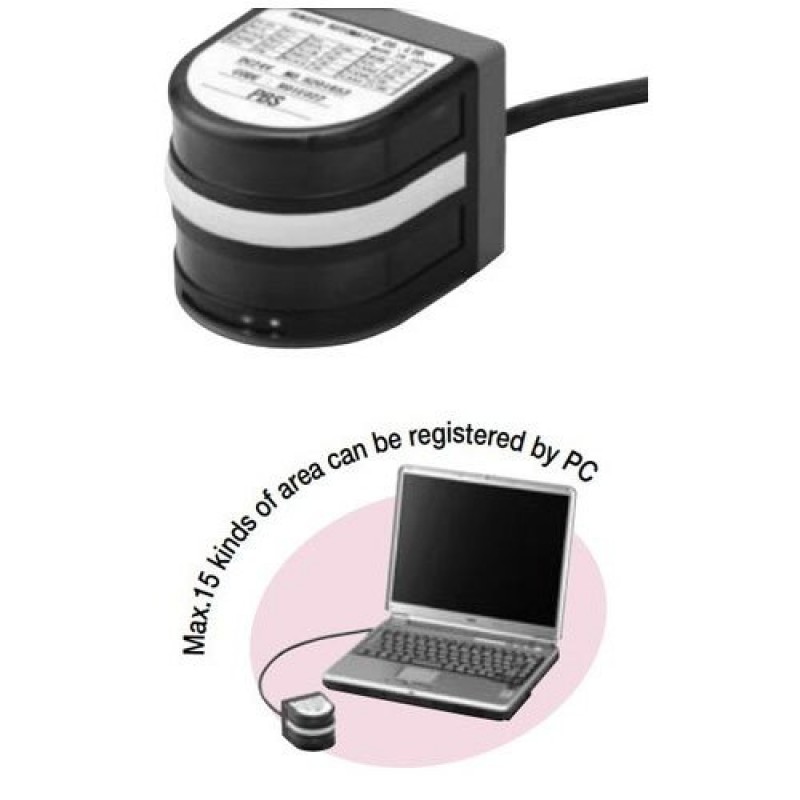

·         This is 60% smaller than PB9 about cubic volume. Scanning angle(Detection area) is increased to 180°and detectable dead zone is smaller.
·         Operation principle is that semicircular field is scanned by LED(lambda =880 nm) and the coor dinates are calculated by measuring distance to object and its step angle           and then it detects obstacle in setting area.
·         Detection area can be set by PC(RS-232C). Detection distance with 3 steps output for each area can be set.
·         Changeover for Max. 15 kinds of detection area set by PC can be made by outer bit input.

Caution

2-M4 Depth 7 54 66 70 60 0.5 75 31(Center 2 of scanning) Receiving part Projecting part Indicato r 218° (View angle) Note ) Dete cting ra nge is 180 °. 11
·         It may cause malfu nction when there are any mirrors or reflecti ve plates at 19m or mo re ahead. In case that, install the sensor in 6 degrees upward or downward.
·         Don't close light-projecting/r eceiving window or int errupt area when installation
·         Wiring shoul d be kept away from power line or high voltage line or load line as far as possible because of affection of noise or sur ge induction.
