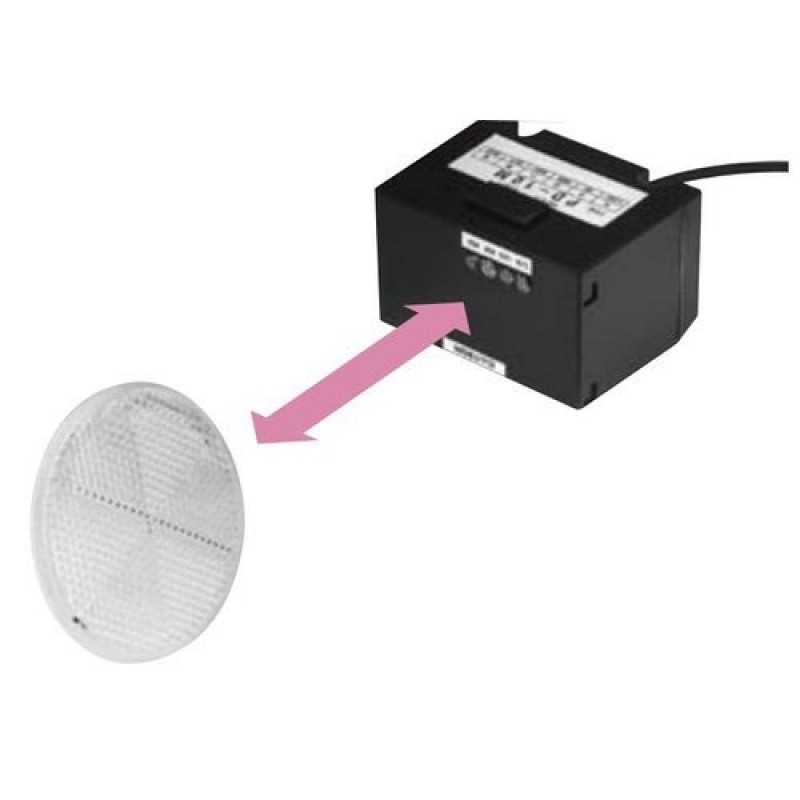

PD Optical Distance Measuring Sensor
Product Details :
Power source | 24 VDC |
Current consumption | 125 mA |
Detecting distance | 0.2 to 10m |
Detectable objects | 100mm plastic retro-reflector |
Repeatability | 100 MM |
Absolute precision | 200 MM |
Hysteresis | 300 mm |
Resolution | 40 MM |
Directional angle | 2.5 Degree |
Weight | 200 Gm |
PD-10M/8NM
Converting distance data to analog voltage!
Comparator output is provided
·
Range-finder
type sensor with infrared LED.
·
This
sensor pr ovides comparator outp ut(2 output) that can set optional distance
value and alarm outp ut that executes at the out of detectable area. (provided
PD-10M only)
·
This
sensor pr ovides ligh t-emission stop outp ut for interfe rence.
