PHA Photoelectric Sensor
Product Details :
Weight | 400
GM |
Light
receiving element | Infrared
LED |
Detecting
distance | 20m |
Detectable
object | Opaque
object with 3mm or more |
Connection | Pull-out
cord type(4m long, 0.3mm2 shield wire) |
Protective
structure | Protective
structure IP40(IEC Standard) |
Case | Steel
plate(SUS304) |

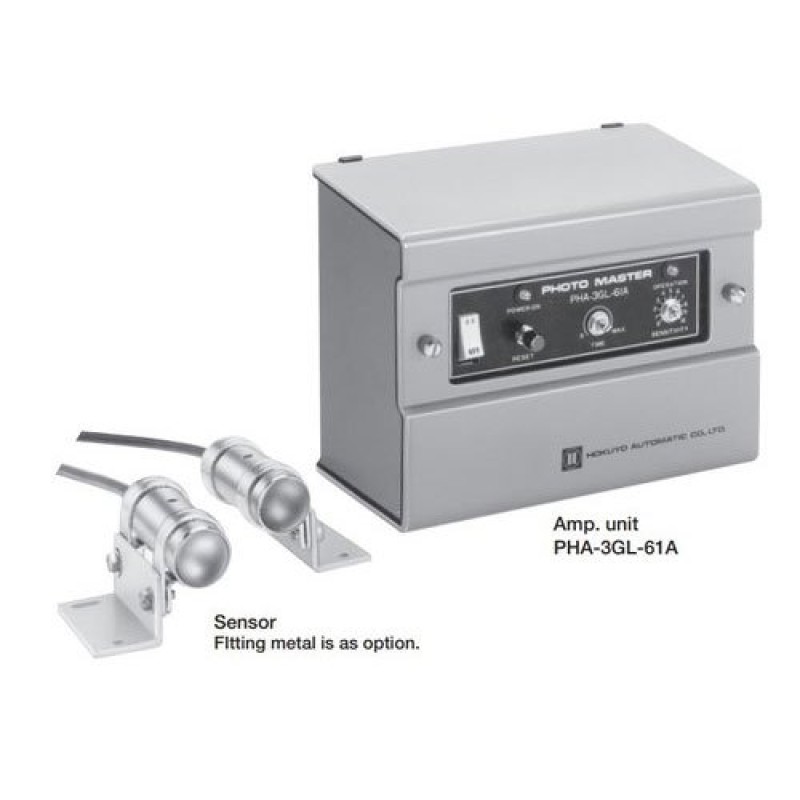

PHA-3GL-61A/62A
Long distance and high-sensitivity type
·
This
is a long distance and high-sensitivity type sensor which is suitable for
roving frames for detecting sliver breakage. Beam is passing just under running
sliver and this is monitoring sliver breakage.
Application:
·
Sliver
breakage detection for roving frame. It installs at delivery side and detects
sli breakage or roving blockage.
