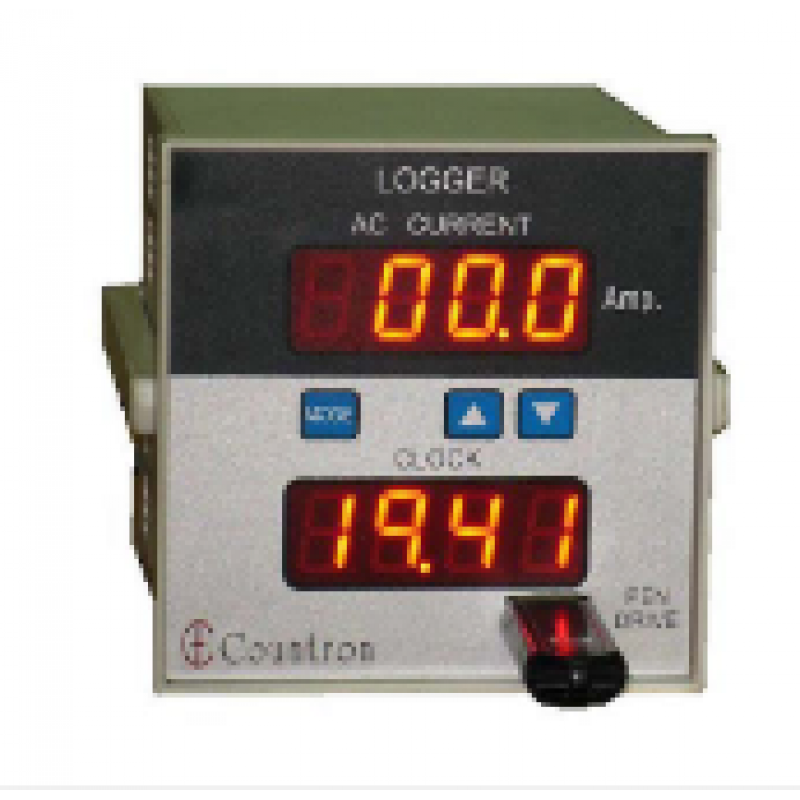

Strip Chart Recorder for AC Current
Product Details:
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Separate displays for Current and Clock
- Rate of logging settable by user in Mins:Secs
- Logging threshold user settable beyond which logging is enabled
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.
Specification
Display | 0.56” Red LED display for Current |
Display Range | 0-30.0 Amps AC for input 0-1Amp AC (CT Ratio – 30:1) |
Resolution | 0.1Amp |
Logging Rate | 1 second to 99Mins59seconds |
Logging Threshold | Logging is enabled when current exceeds the Current “Set” Limit |
Data Logging | Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and AC Current |
Sensor | Current Transformer with conversion ratio 30:1 |
Real Time Clock | Adjustable Calendar (Month/Date) and Time (Hrs:Mins) |
Accuracy | ± 1% ± 1 Least Significant Digit for Current |
Power Supply | 230V AC ± 15% at 50/60Hz |
Mounting Type | Panel/Bottom surface |
Front Facia | 96mm x 96mm |
