GENETIX Purifier HT 96 Magnetic Particle Separator, 100-240V, 50/60Hz

Code: GXHT101-96

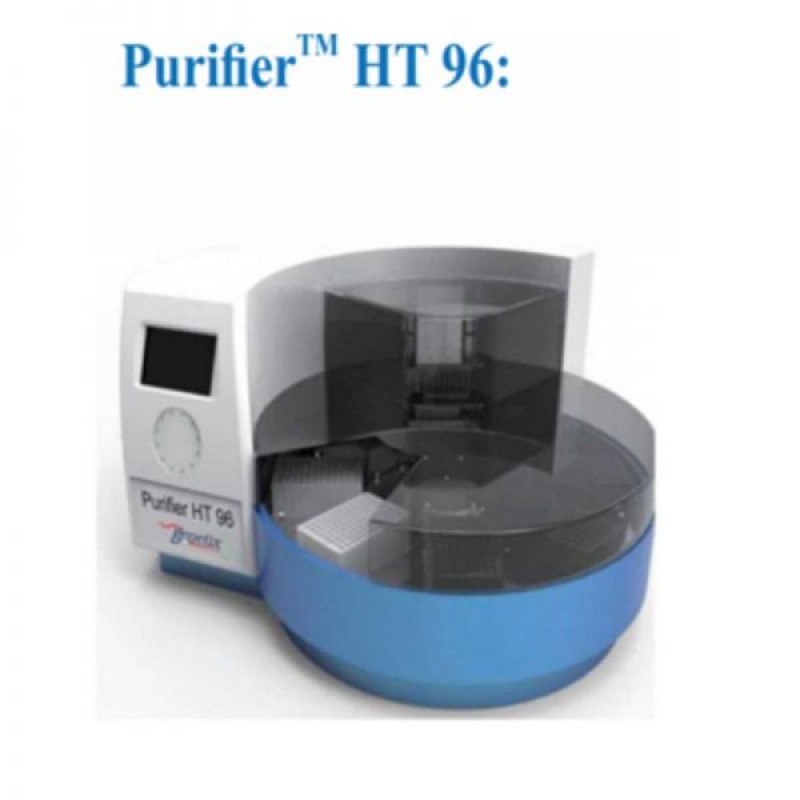

Purifier™ HT 96 is a 96-channel high throughput automatic purification and extraction instrument.

Description

Features and Benefits:

Purifier™ HT 96 is a 96-channel high throughput automatic purification and extraction instrument is a open system that is ideal for ultra-high sample processing requirements (Min. 2500 samples/day/instrument). Equipped with 8 SBS/ANSI footprint plate stations, each plate position can be heated separately. Our proprietary Purifier PRO software allows for 96 or 192 samples to be purified in one batch. Genetix’s unique SUPER VIBRATE patented

vibration technology can achieve 10Hz bidirectional vibration which enables effective viscous sample mixing such as whole blood and feces. Spring-load plate stations and servo motors ensure smooth operation of the instrument during ultra-high vibration. Variable intelligent magnetization can reduce magnetic bead retention to W0.5%. Grade 11 HEPAfilter ensures user safety

Product Specifications:

• Extraction Per Run – 96 or 192 samples (any number of samples from 1 to 192).
• Temperature Range – Ambient to 96ºC .
• Sample- 20µL to 1000µL.
• Elution – 20µL to 1000µL.
• Extraction Run time- 25 min for 96 samples.
• Environment Safety – HEPA filter & no aerosol generates ,UV Sterilization (Optional).
• Electrical safety- IEC 61000-4-2 to 11.
• Internal Memory- 500 Protocols.
• Vibration Method – Mechanical Super Vibrate.
• Variable Intelligent Magnetisation- Yes.
• Communication Ports – USB & Ethernet.
• LCD display- Yes.
• Type and Physical Dimension- Desk top (685*600*390 mm).
• Weight- Approx. 35 Kg.
