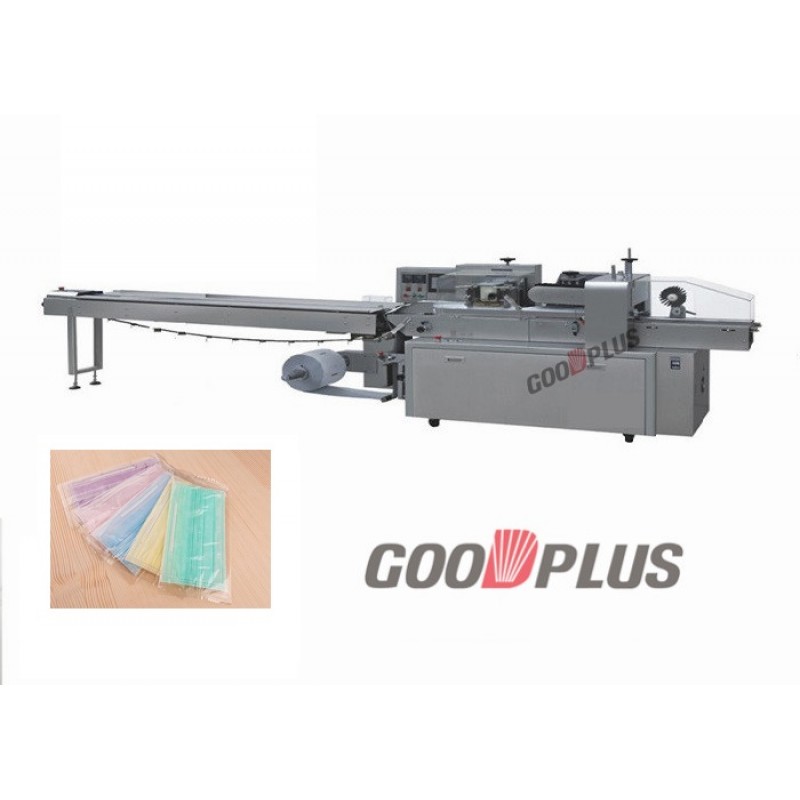

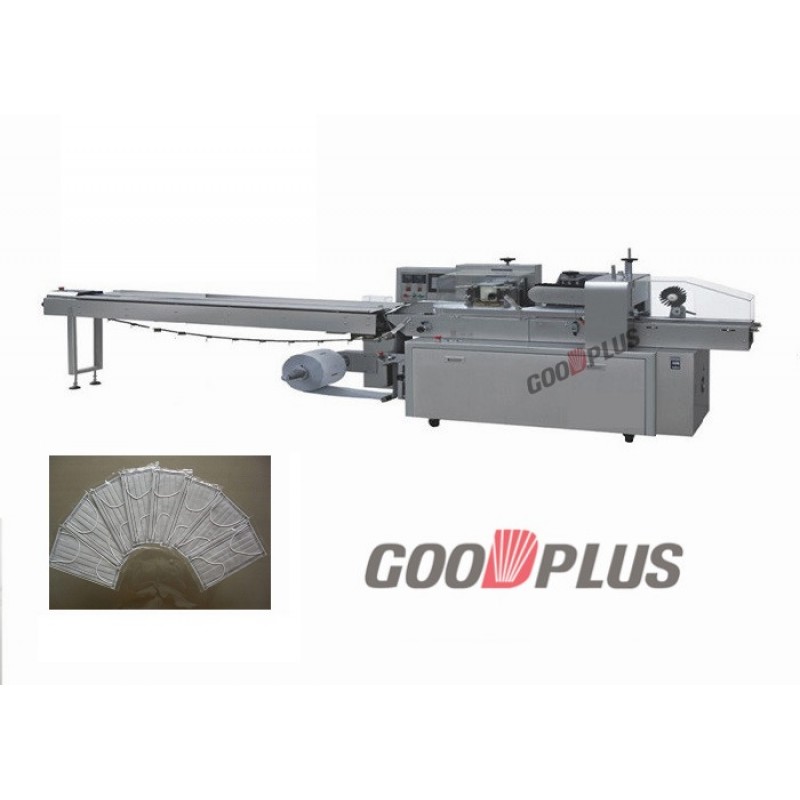

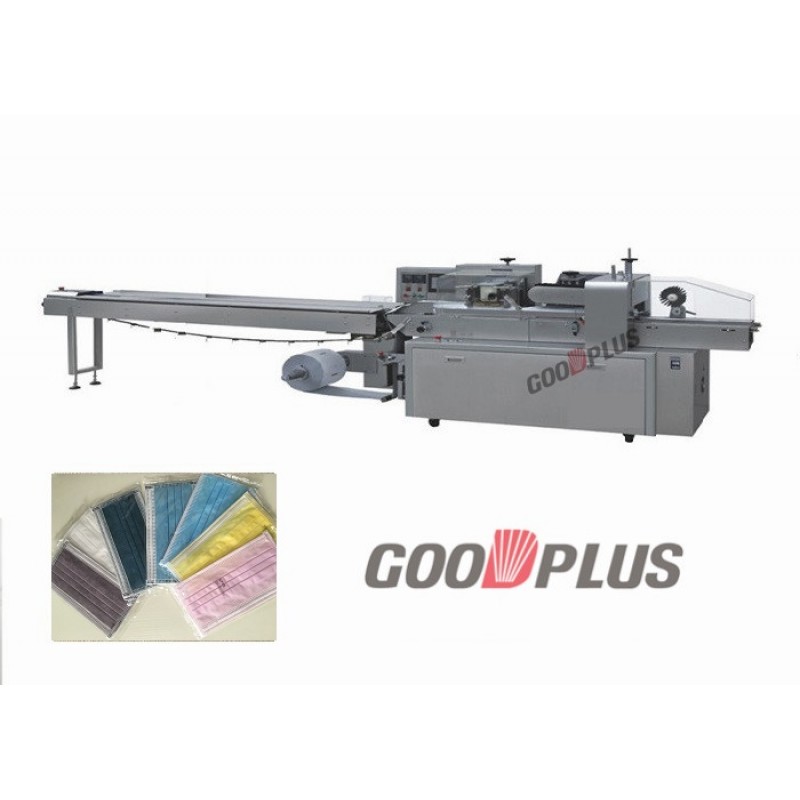

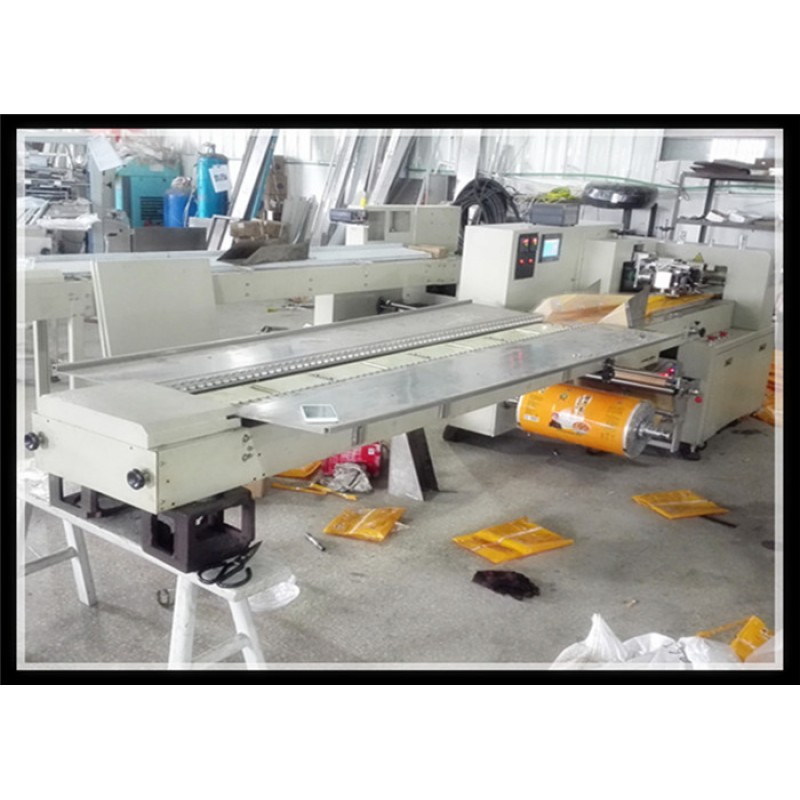

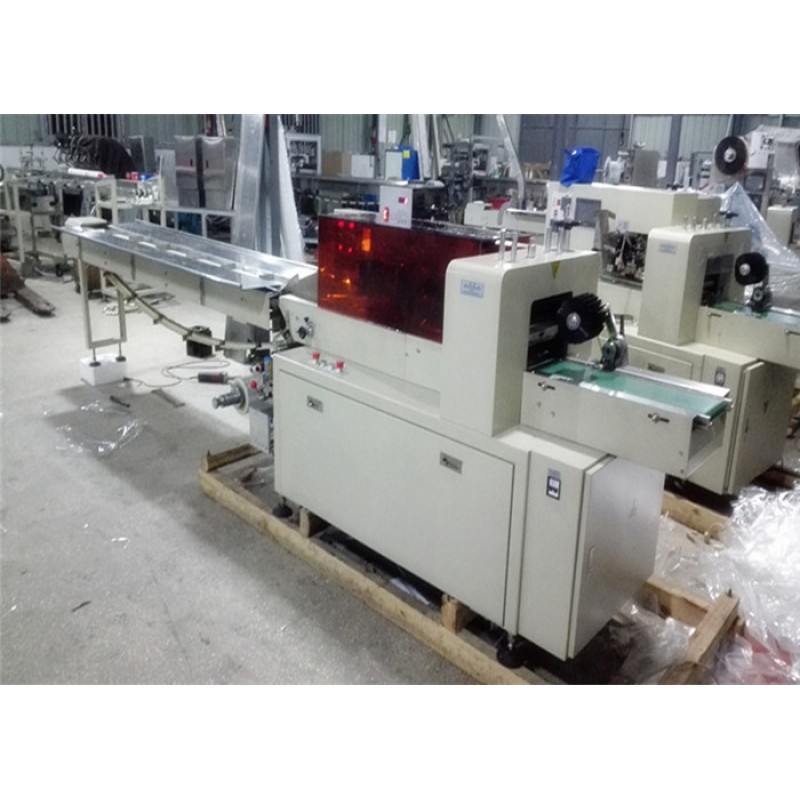

Overview of equipment:The machine is an advanced equipment for packaging various solid-state objects with regular shape, such as composite film, paper film, aluminum film and so on. With advanced design, reasonable structure, the whole machine adopts PLC computer control, the main speed variable frequency stepless speed. Make packaging product seal clear, good sealing performance and other characteristics.

Main performance features:

1,The main control interface of the whole machine can be switched between English and Chinese with stable performance and simple operation.

2, man-machine interface all Chinese display, set storage, convenient, fast.

1. The main motor is equipped with high-quality AC frequency converter to realize continuously variable speed.

   4, high-precision photoelectric detection and tracking, two-way automatic compensation, accurate and reliable.

   5, the bag length adjustment adopts the tooth chain type stepless variable transmission, durable, stable and accurate.

   6, the conveyer chain does not stop to adjust the device, convenient, sensitive.

   7, adjust the end seal structure, make the seal more perfect, and eliminate the phenomenon of cutting package.

   8. The exterior of the machine is carbon steel with paint

   9, which can be equipped with nitrogen filling device, Install hot code machine, print position can be chosen at will.

   Main technical parameters:

order numbermodel3501Maximum film width350mm2Speed30-80pcs/min3film thickness0.03-0.06mm4Bag length100-480mm5Packing width50-3506Packing height≤150mm7aggregate capacity3.0Kw 220v8

Machine shape dimension

(Length * width * height)mm

5000×950×11009total weight900kg
