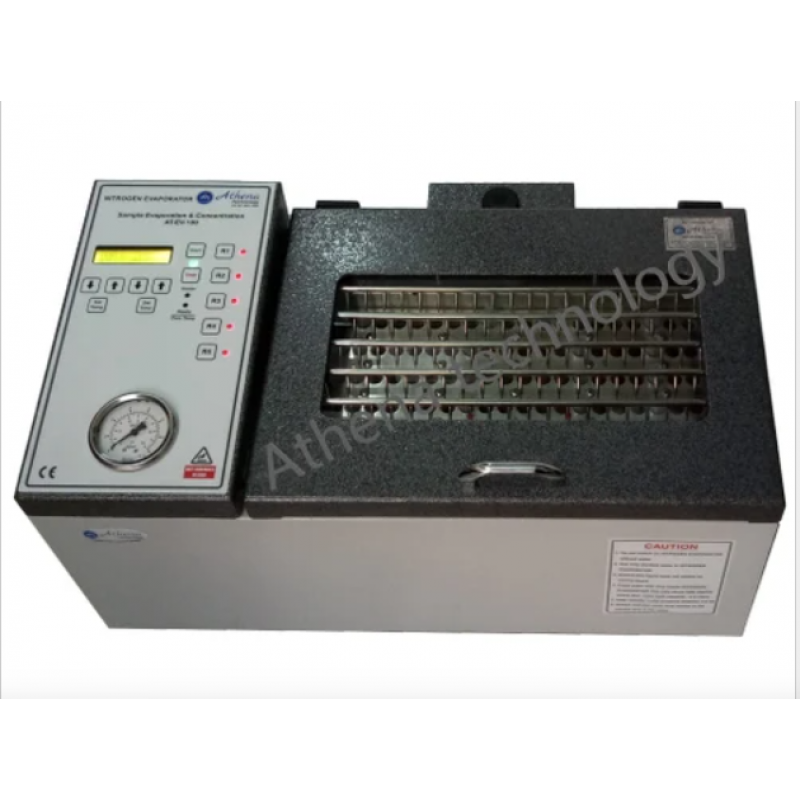

100 Sample Nitrogen Evaporator

Other Details:

• Compact Size Tabletop Model.
• Precise manufacturing using latest technology -Water Jet Cutting & CNC fabrication
• High-Quality Pressure Gauge from Wika.
• Side Handles for easy movement
• SS 316 tank & Nozzle Manifold for durability and maintenance free
• Best Quality powder coating for great looks & to avoid rusting
• Specially Designed Aluminum block for fast & uniform heating
• No Bacterial fungal Growth, No cleaning required
• Tank & Body gap is well insulated with imported Glass wool Sheet to avoid heat loss.
• Digital LCD Display
• Auto Cut off with precision sensor for Time, temperature & gas flow
• Best quality Pneumatic Fitting from Janatics & Parker operation
• Efficient & adjustable ventilation with Built-in exhaust fan with blower
• 2mtr 1.5 ″ID Polyethylene Exhaust hose for easy ventilation
• 4mm Flexible Transparent gas Path Tubing
• Snap fitting 8mm OD Flexible Polyethylene Tubing for nitrogen supply
• 5 Nitrogen Control valves with ON/OFF Switches
• 50 nitrogen –dispending nozzle in five horizontal rows
• Self glowing Power ON /OFF Switch
• Automated Solvent Drying, Solvent Evaporation And Sample Concentration
• Evaporation Medium : Nitrogen & dry Heat (using block)
• Fast evaporation
• Microprocessor-controlled vortex motion increases surface area for faster evaporation.
• Maintenance-free, microprocessor-controlled motor provides smooth variable-speed ower to drive the vortex motion.
• Audible alarm with automatic shut down for timed end point
• Audible/visual alarm for end point detected by temperature sensors at heater and block..
• All mechanical components are isolated from the chemical fumes and vapors for longer life.
• Time Range: 15 sec to 10 hours
• Time Set-up / down arrow keys (15 sec increments)
• Temperature range: Ambient to 100 ºC (thermal cutout for safety)
• Temperature set-up / down arrow keys (1 °C increment)
• Start/stop : Green LED indication when process is On
• Gas stations : 5 Nos. with LED indication
  Gas regulator range : 0 to 100 PSI
