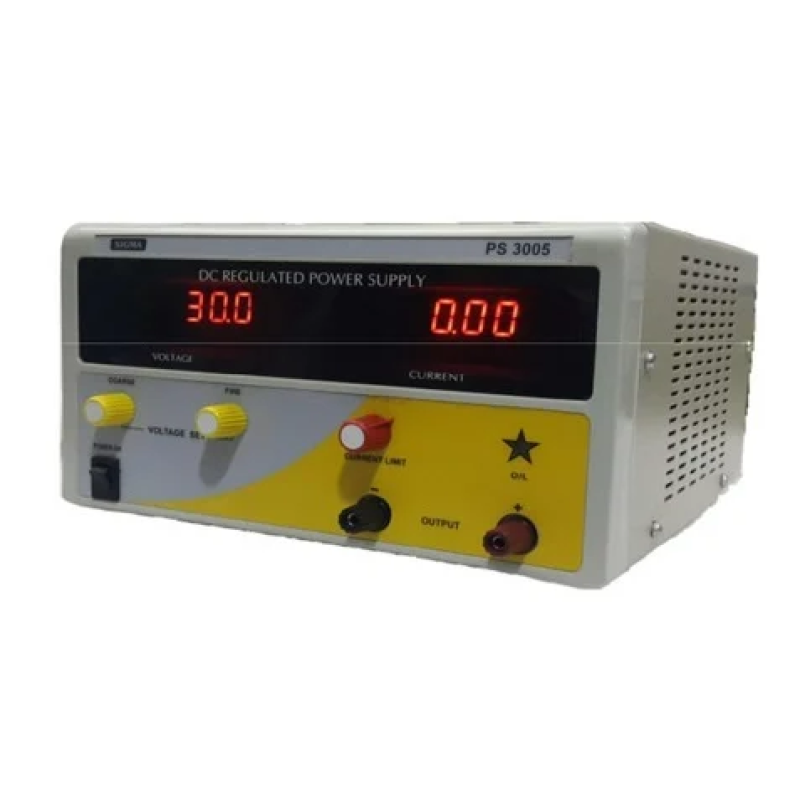

10AMP DC Regulated Power Supply

Output Type	Dual
Output Voltage	12V
Output Current	10A

We are engaged in providing 10AMP DC Regulated Power Supply. These products are developed under the worldwide industry norms.

DC Regulated Power Supply is an easy to use, low ripple high regulation precision instrument. It is particularly suitable for experimental development and low voltage applications. Its unique feature is over load protection, which makes it a safe power source for testing of electronic equipment.

The power supply’s output is floating i.e., either the positive or negative output is connected to the chasis or ground. Thus the power supply may be used as a positive or negative DC source by grounding –ve or +ve terminal respectively, can be floated to maximum ± 30 volts DC.

Fixed supply is available without display and controls. Optional model are also available for other voltage or current range.

Specification:

INPUT VOLTAGE	230V ± 10AC 50Hz
OUTPUT VOLTAGE	0 - 30V DC
OUTPUT CURRENT	0- 10Amp
LOAD REGULATION	± 0.5% From No load to Full load
LINE REGULATION	± 0.05% For ± 10% variation in Input Voltage
RIPPLE	Less than 100mV
METER	Two Digital meter to monitor the output Voltage & Current of Output
PROTECTION	Against short circuit & Over load
