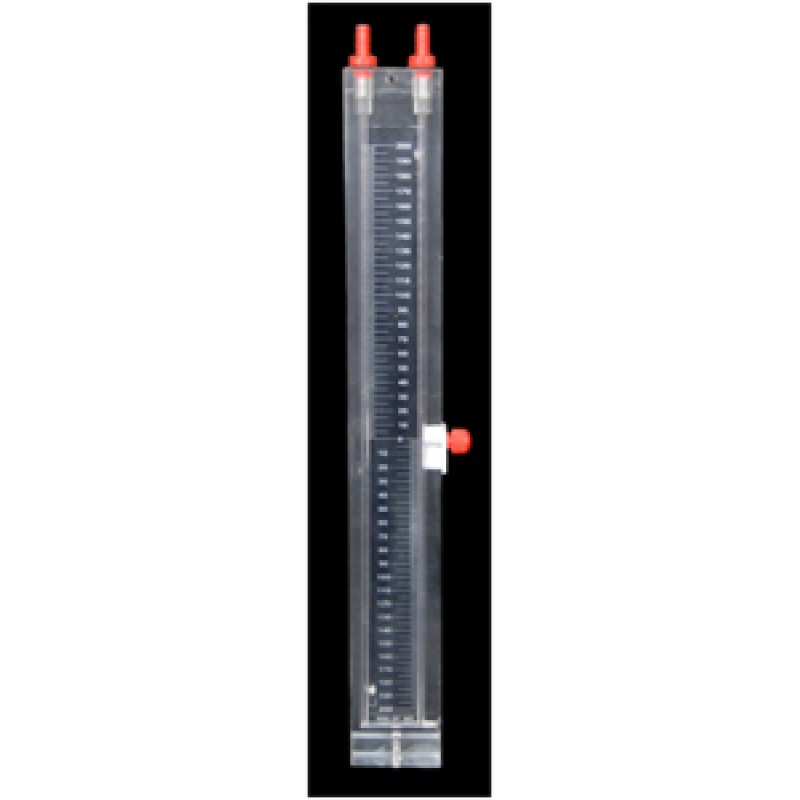

ACRYLIC BODY U TUBE MANOMETER

Product Details:
FLOW POINT :- SOLID PMMA TRANSPARENT ACRYLIC BODY U TUBE MANOMETER ARE ACCURATE AND DEPENDABLE AS WELL AS HIGLY VERSATILE FOR MANY APPLICATIONS. IT FABRICATED FROM 25 MM THICK TRANSPARENT ACRYLIC SOLID BLOCK ,VIRTUALLY UNBREAKABLE STABLE AND FREE FROM DISTORTION FOR THE PRECISION MEASUREMENT OF PRESSURE ,VACCUM AND DIFFRENTIAL ,SCALES ARE GRADUATED TO CORRECT FOR THE DROP IN THE WELL LEVEL FOR INCLINED AND SINGLE LIMB MANOMETER FOR HIGH ACCURACY.

TECHNICAL DATA SPECIFICATION:-

MANOMETER BODY	MANOMETER IS FABRICATED IN 25 MM/32 MM THICK (PMMA)TRANSPARENT ACRYLIC CLEAR SOLID BLOCK VIRTUALLY UNBREAKABLE STABLE AND FREE FROM DISTORTRION
Scale	2.5 mm thick Milky white Acrylic Scale, with Black WITH SCREEN PRINTING LETTERS graduated in mm
MANOMETRIC FLUID	RED GAUGE OIL .SP.GR.0.823
END CONNECTION	¼"BSP( F ) OR PVC NOZZLE TYPE.
PAKING	NEOPRINE/PTFE.
MOUNTING	WALL PANEL & FLUSH MOUNTING HOLES
ARRANGEMENT	ZERO ADJUSTING KNOB .LEVEL BULB.
ACCURACY	+/- 0.25%,+/-0.1% OF F.S.D OR BETTER.
TEST PRESSURE	1.5 TIME OF OPERATING PRESSURE.
TEMPERATUE	BELOW 70 DEG.C
