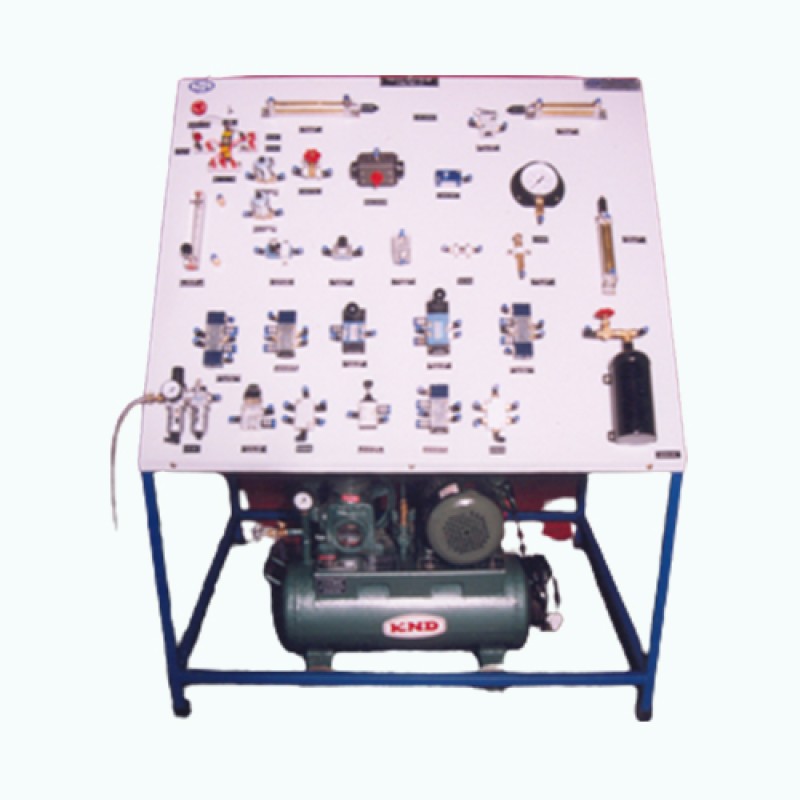

ADVANCED PNEUMATIC TRAINER (PNEU – 03)

Product Details:

This trainer aims at helping the students to make complex pneumatic circuits using input and output signals.  Complex valves and actuators can also be studied with the help of this trainer.

Range of Experiments

• Study of air filter, pressure regulator & lubrication
• Study of single acting cylinder
• Study of double acting cylinder
• Study of pilot operated D.C. Valve

• Study of AND logic
• Study of OR logic

• Study of NAND logic
• Study of NOR logic

• Study of Pneumatic sensor circuit
• Study of use of multiple cylinder
• Study of speed control of double acting cylinder
