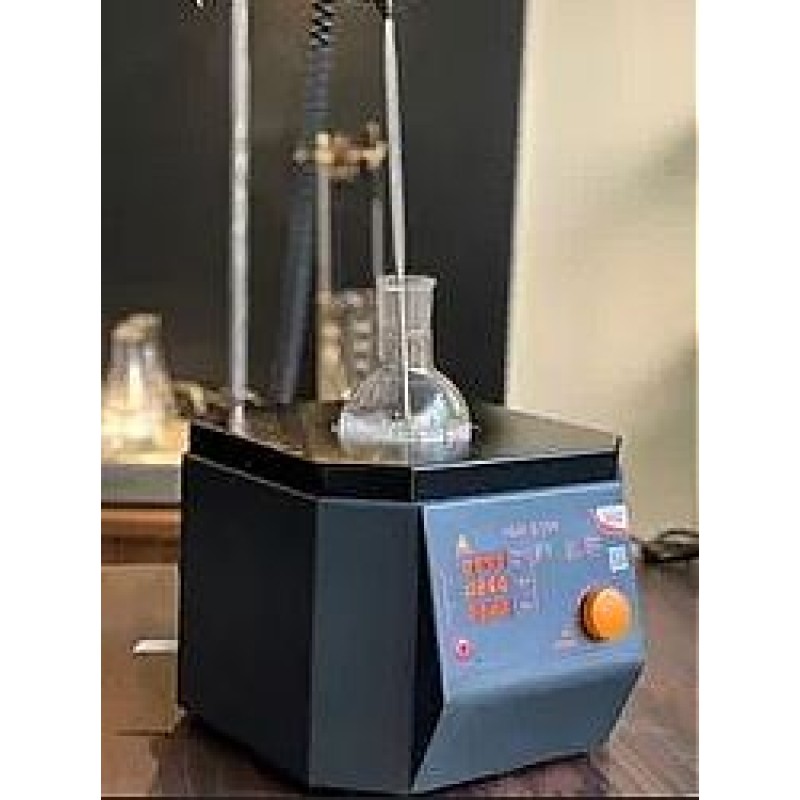

Advanced Digital Heating Mantle with Stirrer
Product Details :
| Minimum Order Quantity | 1 Piece |
| Usage/Application | Lab Applications |
| Material | Glass Yarn |
| Size | 100ml to 5000ml |
| Controller | Digital |
| Voltage | 230VAC |
| Capacity | 100ml to 5000ml |
| Temperature | upto 400 Deg C |
| Phase | Single Phase |
| Insulation | RockWool |
- Designed for advanced Laboratory usage
- SS & Aluminium Construction
- For Round Bottomed Flasks as per DIN – 12347
- Single shuffle knob to set temperature, stir speed & time of activity
- Independent keys for C/F selection & mantle/probe selection
- Accurately Control liquid temp. with included PT 100 sensor probe
- Glass fibre yarn knitted mantle provides uniform heating to flasks
- Innovative spill collect system enables collection of spillage in cares of breakage of flasks
| Operating voltage | : 230VAC/50Hz |
| Display type | : LED segment |
| Temperature range | : ~400°C |
| Temperature step size | : 1°C |
| Temperature resolution | : 1°C |
| Stir range | : 50 to 800RPM |
| Stir step size | : 50RPM |
| Timer range | : 00:01 to 99:59 |
| Timer step size | : 00:01 |
| External probe connection | : DIN Port |
| Cap(ml) | Watts | Dimension, mm |
| 100 | 220 | 240x315x203 |
| 250 | 220 | 240x315x203 |
| 500 | 270 | 240x315x203 |
| 1000 | 370 | 240x315x203 |
| 2000 | 520 | 309x390x262 |
| 3000 | 520 | 309x390x262 |
| 5000 | 670 | 309x390x262 |
- Magnetic Stirring bar 20mmx8mm (For 100-1000ml)
- Magnetic Stirring bar 25mmx9mm (For 2000-5000ml)
Additional Information:
- Production Capacity: 100
- Delivery Time: 1 Day
- Packaging Details: Corrugated Box
