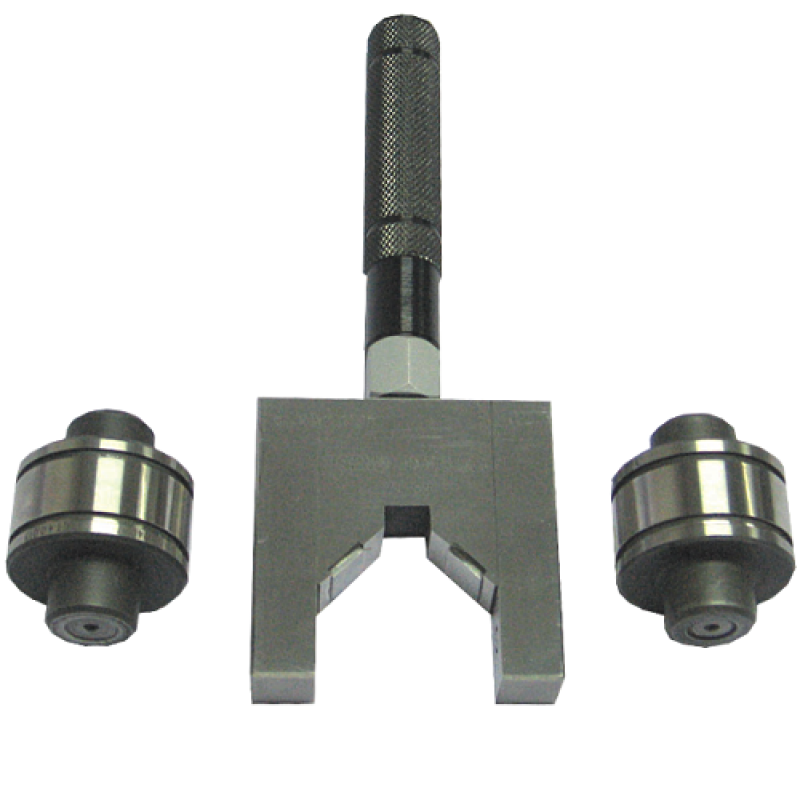

Air Snap Gauge
Products Details:
Brand | Unity |
Use | Shaft Diameter Measurement |
Surface | Carbide Resting Pads |
Supply | High and Low Setting Master |
Range | 25 mm to 100mm |
Perfect shape and swift movement of our organization have made us instrumental in offering durable Air Snap Gauge that has jets fixed to the carbide tip to suit the clients' demands. We are largest suppliers and manufacturers of Air Snap Gauge. Under the supervision of our skilled professionals, we manufacture this snap gauge by using optimum quality components and cutting-edge technology, in line with the set industry standards. Apart from this, our offered snap gauge is tested against various quality parameters by our experts.
Features:
- Contemporary design
- Excellent functionality
- Smooth finish
Products Details:
- Useful for shaft diameter measurement
- Consists of hardened rectangular steel body precisely ground lapped to maintain the clearance in the workpiece
- The flow of air over gauging surface helps in self-cleaning.
- Two jetted air snap gauge for measuring size, taper, and ovality.
- Diameters can be checked on the machine
- Carbide resting pads on V surface
- Suitable for through or shoulder shaft design measurement
- Supplied with high and low setting master
- Special six jetted air snap for checking the crowning effect on crankshaft diameter can be provided
