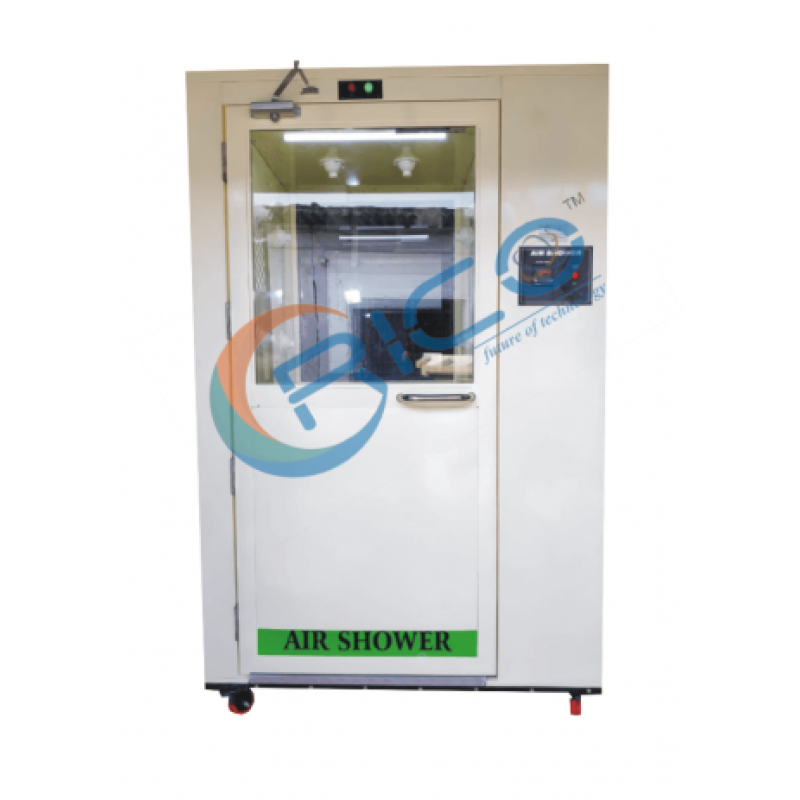

Air shower
Click Image for Gallery
Air shower
Air shower
Product Details:
Special Features
  • Outer Chamber is made up of MS powder coated
  • The interior room is made of stainless steel (304 grades).
  • The wool between the outer and the internal body is filled for insulation and for the prevention of thermal damage.
  • Door gasket is provided for proper sealing with heavy sealing and door closing device
  • Heating elements are made up of high quality Nichrome
  • Kanthal wire are embedded around the chamber
  • Supplied with 1 (or) 2 removable shelves
  • The temperature is controlled by the electronic digital temperature indicator and is fitted in front for easy visibility
  • Temperature is displayed on digital LED
  • Front panel beside the temperature display also includes the ON/OFF switch
  • Supplied with chord and Plug

Applications

  • Microelectronics and semiconductor industries
  • Pharmaceutical industries
  • Biomedical research
  • Life Sciences
Model No:
RSI/AS-11
RSI/AS-12
RSI/AS-13
RSI/AS-14
Air Shower w/o Bottom Board
External Dimension (mm)
1300 x 800 x 2050
1540 x 1000 x 2050
1540 x 1200 x 2050
1540 x 1600 x 2050
2000 x 2000 x 2050
2300 x 5000 x 2050
Internal Dimension WxHxD (mm)
800 x 750 x 1920
800 x 950 x 1920
800 x 1150 x 1920
500 x 1550 x 1920
800 x 1950 x 1920
800 x 4950 x 1920
Nozzles
6 - One Side
12 - Two Sides
16 - Two Sides
18 - Two Sides
24 - Two Sides
60 - Two sides
Blow Power
550W
100W
1500W
2000W
2200W
7500W
HEPA Filter Dimension
550 x 610 x 120 - One Piece
610 x 610 x 120 - Two Pieces
915 x 610 x 120 - Two Pieces
1220 x 610 x 120 - Two Pieces
610 x 610 x 120 - Four Pieces
610 x 610 x 120 - Ten Pieces
Suitable Person
1 Person w/ one side blowing
1 Person w/ two sides blowing
1 - 2 Persons w/ two sides blowing
2 - 3 Persons w/ two sides blowing
Cart
Nozzle Diameter
38MM
Air Shower Time
0 ~ 120 seconds Adjustable
Spurt Wind Speed
18~25 m/s
Filter Efficiency
99.99 %
Cleanliness Level
Class 100
Noise level
Less than 60 db
Shower jet velocity
More than 20±2 meter/second
Door
Aluminium fabricated with safety glass and electromagnetic locks
Construction
Aluminium / Powder coated MS / 304 - 316 Stainless steel
Standard fittings
- Fluorescent light
- Pre-filter (washable)
- HEPA filter
- Nozzle (Fixed or Adjustable)
- Emergency stop buttons (both sides)
- Blower motor assembly
- Anti slip floor
- Door bell
- Door closers
- Door handles
Optional
- Infrared sensor auto sliding door
- PLC controller w/ touch screen
- ULPA filter
- AMC
Design Options
- Entry exit type
- L type entry exit
- One way entry
- Two way exit type
Power Supply
220/440Volts AC,  50/60 Hz
