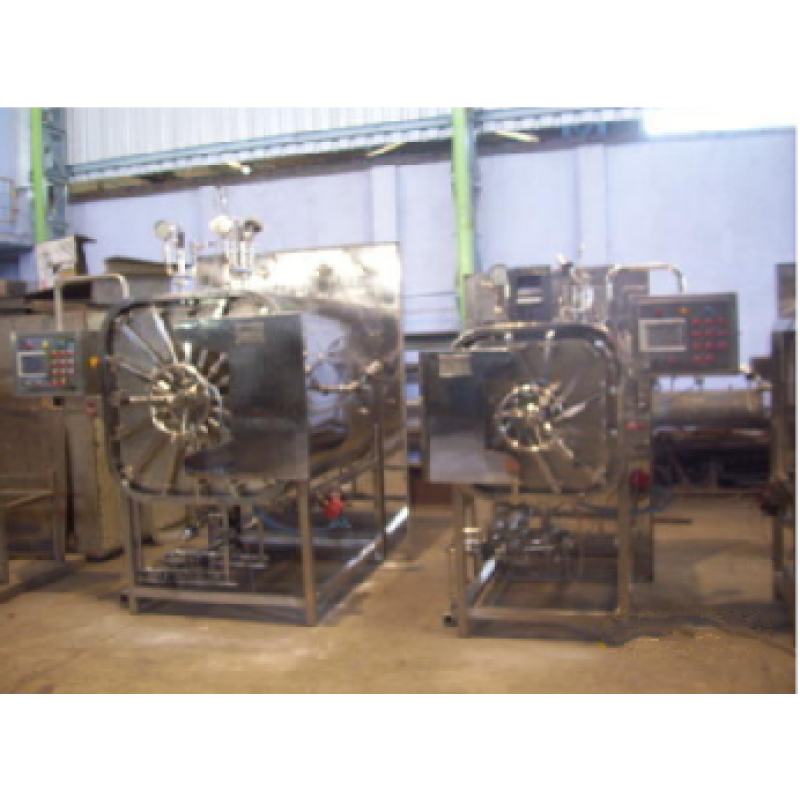

28 Psi Stainless Steel Horizontal Autoclave
Autoclave manufactured by Neelam industries are the most versatile and flexible designed to meet the widest requirements of the Pharmaceutical Industry. Neelam industries offer any specific sterile requirement and meet User''''s R & D and Production requirement with Standard or customized model of sterilizer.
Features :- Dimple steam Jacketed for better Uniformity of the heat Distribution. ( Technology for fast Sterilization cycle and low cost operating ).
- Single or double door with Sliding or Hinged door options
- Automatic Printing facility for control in case of heat labile materials.
- The touch-screen for visual process control and connections for measuring signals and printers.
- Remote support connection
- Online Printing and recording confirming to 21 CFR PART 11.
- 0.2 bacteria retentive, sterile air filter for vacuum break. [Optional SIP facility can be provided]
- Contamination Seal to prevent cross-flow of air between the clean and unclean area.
- Validation ports for insertion of temperature sensors for thermometric testing.
Programs :- HPHV Cycle
- Fast Exhaust Cycle
- Slow Exhaust
- Chamber Leak Test Cycle
- Bowie Dick Test Cycle
- AOP Cycle ( FOR Liquid Solution Sealed in Ampoule & Vial )
Product Description
Automation GradeFully AutomaticMount TypeFloor Mounted AutoclaveTemperature Range121 deg C to 125 deg CApproval CertificateISO 9001 2008Pressure Range (psi)28 psiMaterialStainless SteelPower Consumption (KW)1-10 KWChamber Volume (Litre)50-5000 LiterSize200 X 200 X 200Insulation WallDouble WallShapeHorizontal
Product Description
Automation Grade
Fully Automatic
Mount Type
Floor Mounted Autoclave
Temperature Range
121 deg C to 125 deg C
Approval Certificate
ISO 9001 2008
Pressure Range (psi)
28 psi
Material
Stainless Steel
Power Consumption (KW)
1-10 KW
Chamber Volume (Litre)
50-5000 Liter
Size
200 X 200 X 200
Insulation Wall
Double Wall
Shape
Horizontal
