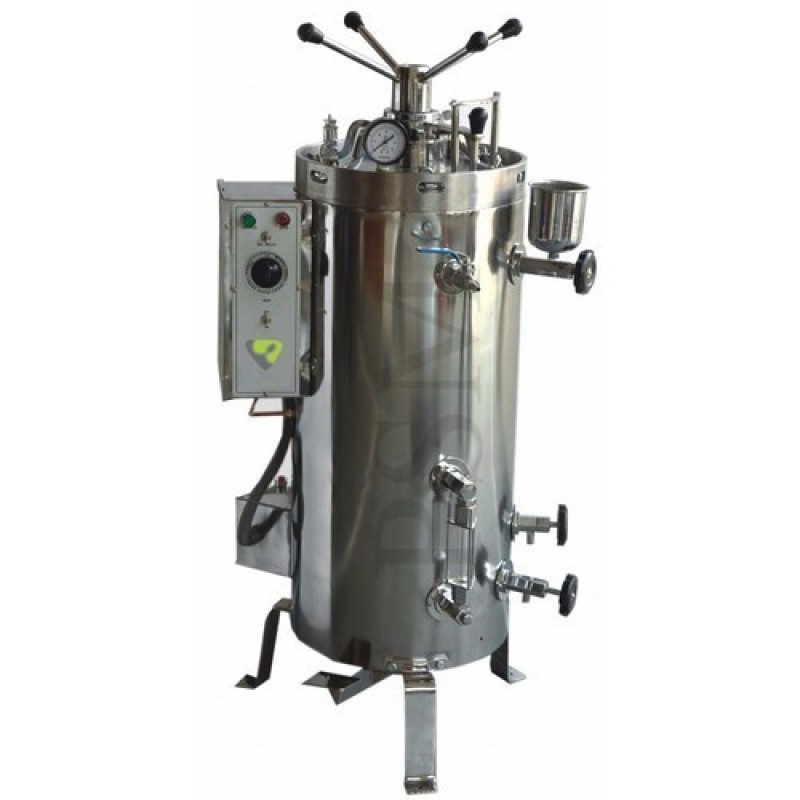

Autoclave Hi-pressure Vertical Radial Locking

Description :

• Autoclave Hi-pressure  Vertical Radial Locking.
• Size/ capacity: 40ltr – 180ltr

Double wall single chamber autoclave. The inner chamber and outer wall made of stainless steel. Ring made of Stainless Steel/Mild Steel. the lid is made of stainless steel tightened by radial arms through a steering wheel made of chrome plated mild steel. The instrument is absolutely leak proof. Equipped with Pressure Gauge, Safety Valve, Double Safety Valve, Steam Release Valve, Vacuum Release Valve, Rubber Gasket, Inner Container, Inner tripod stand and Mild Steel Legs for Autoclave. Instruments provided with double safety arrangement. The autoclave can hold the in between 15psi to 20 psi .

Also Available In Double Wall And Triple Wall.

Models/Variants Capacity

10*18           23 Ltr  Electrical

12*22           40 Ltr  Electrical

14*22           52 Ltr  Electrical

14*25           60 Ltr  Electrical

16*24           75Ltr  Electrical

18*24           15 Ltr  Electrical

22*30           180 Ltr  Electrical

Double / Tripal Wall

• Inner and Outer chamber made of stainless steel (SS304).
• Outer Chamber works as steam stock jacket.
• Radial locking System with paddle lifting device.
• Built-in safety valve, pressure gauge, pressure release valve & water level indicator.
• Pressure adjustable from 5psi to 20psi with automatic pressure control switch.
• Stainless Steel basket.
• Woking temperature is 121*C.
• Stainless Steel Steam release valve.
• Water level indication gauge glass with Stainless Steel guard.
• Electrical control box fitted with switch, indicating lamp.
• Foot paddle lifting device.
