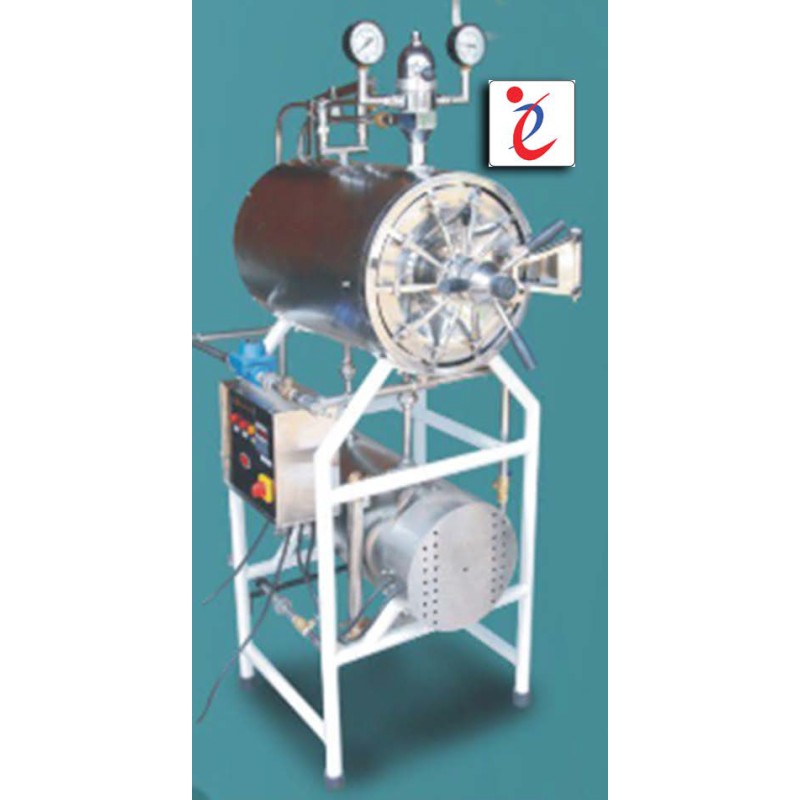

Autoclave Horizontal cylindrical
Product Details :
Triple walled unit made of S.S. 304 grade all joints are argon welded. Mounted horizontal on a sturdy. heavy mild steel tubular stand duty powder coated. Pressure is adjustable horn 10-20 PSI. Fitted with pressure gauge. Safety valve and steam release valve. The units fitted with MULTIPLE OPERATING VALVE to carry out all functions of sterilization cycle at one point i.e. Steam to chanter.
Exhaust, Vacuum/Drying. Fitted with a Digital Temperature Indicator to indicate inner temperature. Automatic Pressure Control device and Automatic Low Water Level Cut-off Device. Lid is made of S.S. plate provided with radial lacking system.
Description :
| Model No | Dia x Depth | Capacity | Load |
| EAUC-HC1 | 250 x 450MM | 22 Ltrs | 2.0KW |
| EAUC-HC2 | 300 x 500mm | 35 Ltrs | 3.0KW |
| EAUC-HC3 | 350 x 550mm | 50 Ltrs | 4.0KW |
| EAUC-HC4 | 400 x 600mm | 75 Ltrs | 6.0KW |
| EAUC-HC5 | 450 x600mm | 95 Ltrs | 6.0KW |
| EAUC-HC6 | 550 x750mm | 175 Ltrs | 8.0KW |
| EAUC-HC7 | 500 x1100mm | 215 Ltrs | 9.0KW |
NB: Special sizes can be fabricated on request
Hot plate Rectangular With Energy Regulator
Heavy MS Body duty powder coated with SS or MS Top, fitted oath Energy Regulator and Rotary Switch supplied complete with cord and plug to work on 220/230V AC (Temperature 250°C-300°Capprox.)
S.S Top
| Model No | Size | Watts |
| EHPE-1SS | 250mmx300mm | 2000 |
| EHPE-2SS | 250mm x400mm | 2000 |
| EHPE-3SS | 300mm x450mm | 2000 |
| EHPE-4SS | 450mm x600mm | 3000 |
M.S Top
| Model No | Size | Watts |
| EHPE-1MS | 250mmx300mm | 2000 |
| EHPE-2MS | 250mm x400mm | 2000 |
| EHPE-3MS | 300mm x450mm | 2000 |
| EHPE-4MS | 450mm x600mm | 3000 |
