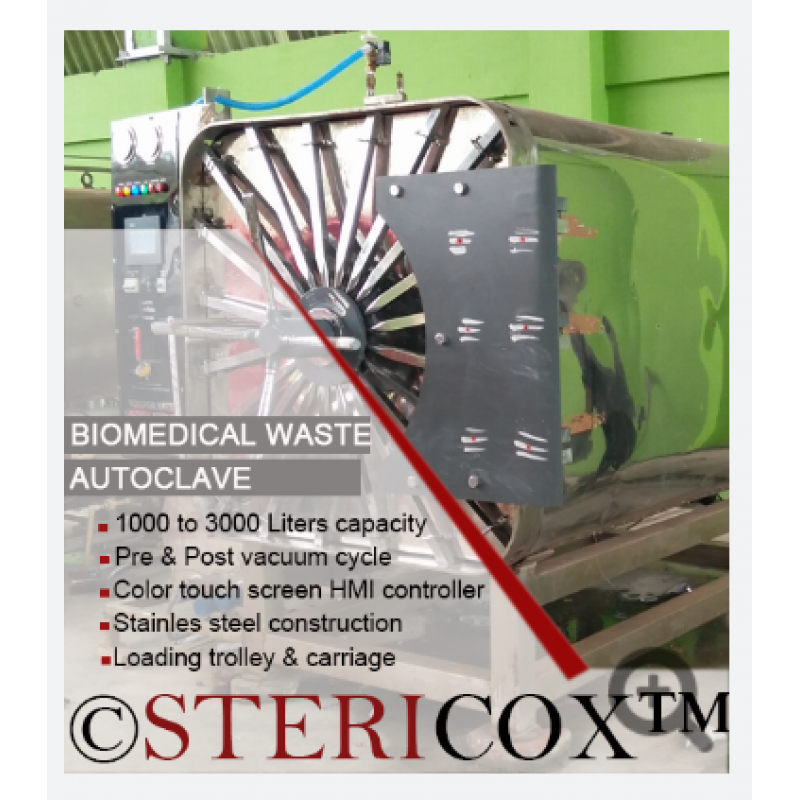

BIOMEDICAL WASTE AUTOCLAVE

STERICOX is a biomedical waste autoclave manufacturer in India and has long years of experience in designing, fabrication and installation of such autoclaves throughout India and overseas market. Depending upon daily waste sterilization capacity, we can design the appropriate sterilizer. If you are not sure which capacity of medical waste autoclave is suitable for your plant, we can evaluate equipment requirements to fulfill needs; in addition, we offer you turnkey installation, startup and maintenance at factory price in India.

We make medical waste autoclaves in both economical design, which is traditional semi-automatic type and has only digital temperature controller and manual press release valves. We also make modern fully automatic biomedical waste autoclave sterilizers with 150 liters to 3000 liters and 5000 liters capacities having facility of pre and post vacuum cycles and feature PLC based color touch screen HMI controller with in-built programs and data logging facility. So we have everything at one place according to your budget and facility needs.

TECHNICAL SPECIFICATIONS

Capacity	150 Liters to 3000 Liters or more
Construction	Triple walled with jacket & chamber
Sterilization chamber	Stainless steel 304 / 316L
Jacket	Stainless steel 304
Lid / door	Stainless steel 304 / 316L
Insulation	Glass wool
Boiler	Stainless steel 304
Working temperature	121° - 134°C
Pressure	15 to 30 psi
Door locking	Radial locking mechanism
Vacuum	Pre and post vacuum cycles
Automation	PLC based HMI controller Bowie-dick and Leak test program In-built data monitoring and recording Imported pressure sensors Imported temperature sensors Pneumatically operated pressure release valve
Safety features	Over pressure safety provisions for chamber and boiler Low water protection in boiler Emergency stop button
Vacuum pump	Water ring vacuum pump
Air filter	0.2µ fresh air inlet filter
Water inlet	Automatic water filling in boiler
Standard fittings	Moisture trap valve Fresh air intake through micron filter Load indicator Electric phase indicators
Optional	Loading trolley
