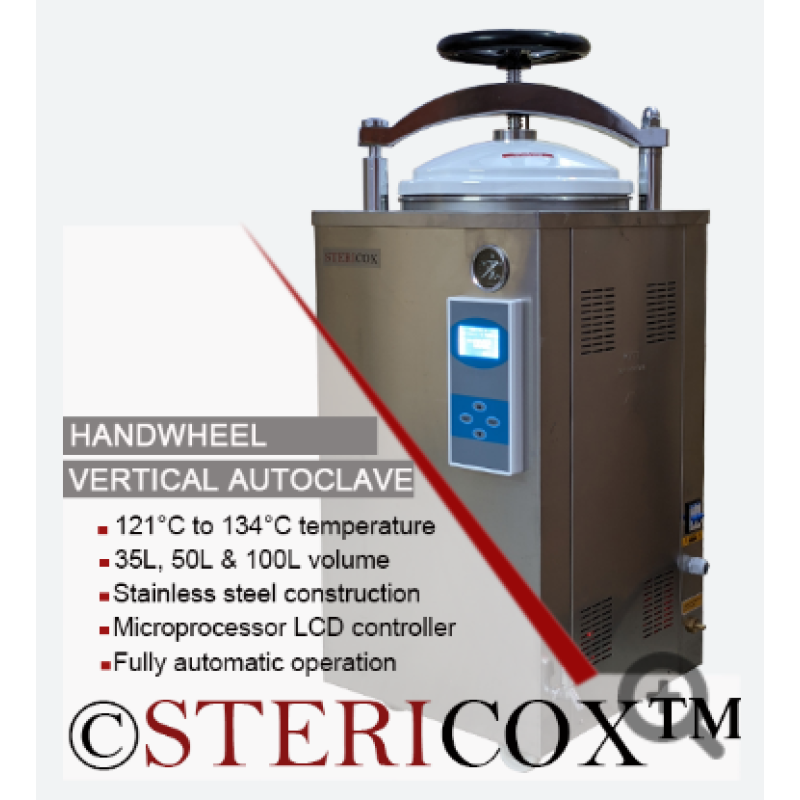

HAND WHEEL MICROBIOLOGY AUTOCLAVE

STERICOX brings to you range of fully automatic vertical autoclave with hand wheel locking mechanism. These vertical autoclaves are ideal for microbiology laboratory of pharma, food, QC, QA and R&D etc. In addition, these hand wheel microbiology autoclaves are also used in decontamination purpose. Standard models of hand wheel vertical autoclaves come in 35, 50, 75 and 100 liters. These hand wheel vertical autoclave are made of stainless steel 304 both inner and outer and equipped with digital control panel, which enables you to set temperature and sterilization time. After end of sterilization, steam automatically releases with a buzzer alert. The important feature of this autoclave is hand wheel locking mechanism. It is easy to open and close; all you need to rotate wheel anti-clock wise to open and clock wise to close the lid. Each autoclave comes with 2 stainless steel baskets of particular dimensions. There are some safety features which make these hand wheel vertical autoclaves safe for operator and sample both. There are protections from low water level safety, over pressure and over temperature protection etc. Whole unit is mounted on caster wheels for easy mobility. For more details, catalog and price list, please email your query. We supply these units all over India at reasonable price with life time guarantee of spare parts.

FEATURES & BENEFITS

• Hand wheel locking mechanism
• Self-inflating silicone rubber seal
• Microprocessor based controller
• Precise sterilization operation
• All stainless steel 304 construction
• Automatic steam release after sterilization
• Low water level protection
• Over temperature protection
• Over pressure safety protection

TECHNICAL SPECIFICATIONS

Model	HAND35	HAND50	HAND75	HAND100
Volume	35 Liters	50 Liters	75 Liters	100 Liters
Inner dimensions (Dia.*L)	318 x 450 mm	340 x 550 mm	400 x 600 mm	440 x 650 mm
Temperature	105°C to 134°C
Working pressure	0.22 Mpa
Timer	0-99 minutes
Construction	Fully stainless steel 304
Display	LED display of Temperature, pressure & time
Controller	Softy key pad controller
Operation mode	Fully automatic operation Automatic steam discharge after sterilization Automatic shuts off with beep alert after sterilization
Basket	2 Nos. stainless steel sterilizing baskets
Safety features	Low water level protection Over temperature protection Over pressure protection
Power supply	220 Volts 50Hz
