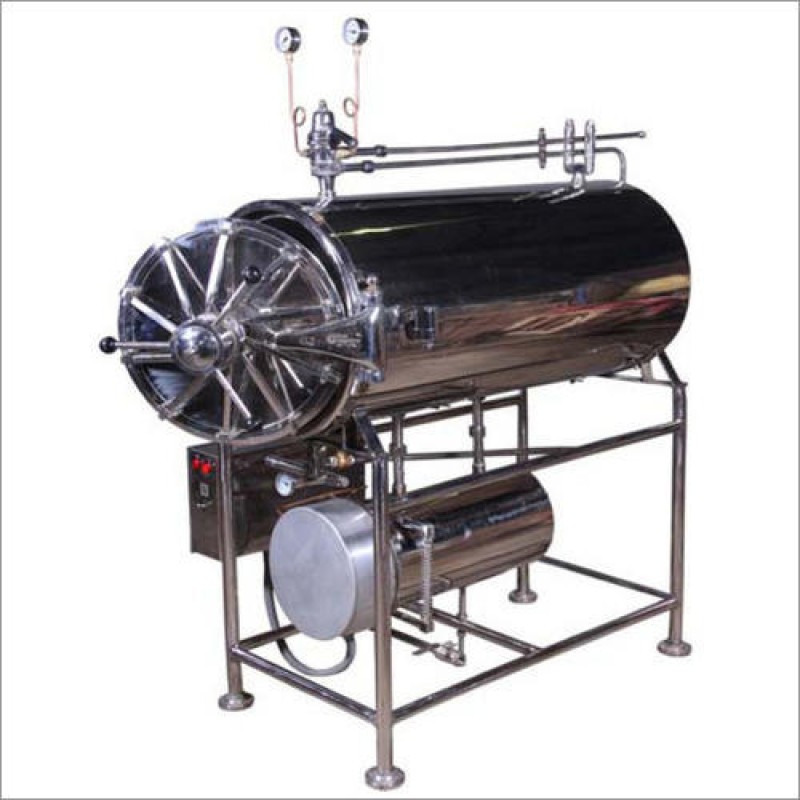

HORIZONTAL CYLINDRICAL AUTOCLAVE SEMI AUTOMATIC
Product Details :
In order to meet large capacity sterilization needs, Zenotrex brings to you a comprehensive range of horizontal autoclaves. These horizontal autoclaves are front loading in design, big in size and designed in cylindrical shapes. These high pressure front loading autoclaves play important role in sterilization procedures required in hospitals, pharmaceutical companies, biopharma and microbiology laboratories etc.
We manufacture cylindrical horizontal autoclave systems, which can be further customized in order to match specific requirements of our customers. Each horizontal autoclave unit provides highly satisfactory performance and competitive price guarantee.
Features:
Available in cylindrical shapes | Steam Storage construction |
Inner tank capacity up to 240 litres or more | Single and double doors |
Automatic pressure locking device | Immersion type heating element |
Silicon gasket door seal | Automatic vacuum breaker |
Low water cut-off device | Hydraulic testing up to 2.5 times working |
Specifications:
Design | Cylindrical Type |
Working Pressure | Variable 15 to 22 PSI (Upgrade 30 PSI) |
Working Temperature | 121°C (up graded up to 134°C) |
Internal Chamber | Corrosion Resistant Stainless Steel |
External Chamber | Corrosion Resistant 304 Grade Stainless Steel |
Door | Single or Double Doors with automatic pressure |
Insulation | Glass wool insulation |
Sterilization Period | 15 to 25 Minutes |
Steam Exhaust | 5 to 7 Minutes |
Boiler | With ISI marked water immersion type industrial |
Safety Valve | For excess pressure inside jacket and steam |
Mechanical Time w/ Alarm | Regulates sterilization time and activates |
Accessories | – Door interlock |
Power Supply | 220 Volts / 440 Volts |
Dia. x Height (mm) | Volume (Liters) | Load(KW) |
400 x 600 | 78 | 6 |
400 x 1100 | 138 | 12 |
550 x 900 | 175 | 12 |
500 x 1200 | 235 | 15 |
600 x 1200 | 339 | 18 |
