High-Pressure Rectangular & Cylindrical Autoclave

Product Details :

Construction

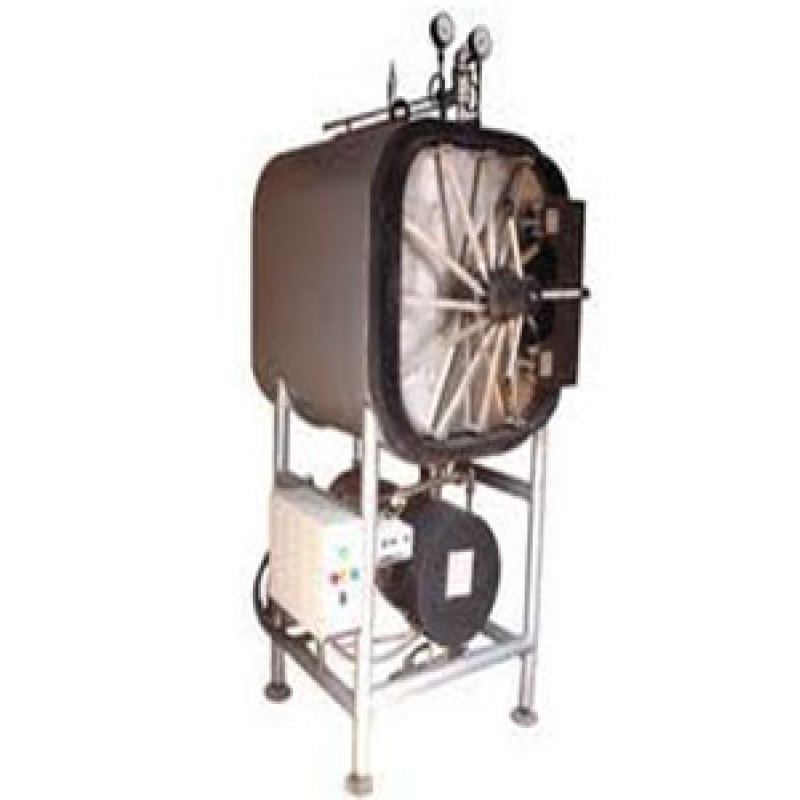

Innovative Horizontal Autoclave is triple walled with steam jacket and separate boiler. Inner chamber and steam jacket are made out of

Heavy gauge S.S. sheet with leak proof argon welding. The Autoclave has single piece door made of stainless steel. Back plate and rising is also made of thick stainless steel sheet. All the Autoclaves are hydraulically tested to withstanding 2.5 times the working pressure. Mounted on tubular steel frame with ground leveling screwed flanges. The Outer jacket is wrapped with asbestos sheet or glass wool to minimize the heat losses due to radiation and is covered by polished stainless steel for the elegant appearance.

Steam Generator

Made of heavy stainless steel sheet. Heavy ring mounted in front of the boiler with folding thick stainless steel plate fitted with heating elements and low water level cutoff device to protect the former from burning out dry. Front folding plate system provides for easy cleaning of the deposited scale on the elements and the walls for long life and efficiency. Fitted with water gauge glass for water level indication, water inlet and outlet valves.

Pressure Control

The pressure control device is incorporated in all electrically operated sterilizers. It economizes the power consumption and reduces the frequent opening of the steam release valve and prevents the release of steam in the room, it cuts off the power supply to heaters when the set pressure is achieved an re-energises the heating when the set pressure is achieved and re-energises the heating elements when pressure falls below the set point.

Heating Elements

Flanged type/ immersion heating element are made of high grade material Operating Temp. & Pressure Sterilizing temp : 121" Sterilizing pressure : 1.2o 1.5 kg/cm2 (15 psi to 22 psi) Power Requirement : Suitable to operate on 440V volts, 3ph,50Hz/Ac supply

Size/Capacity of Autoclave:
