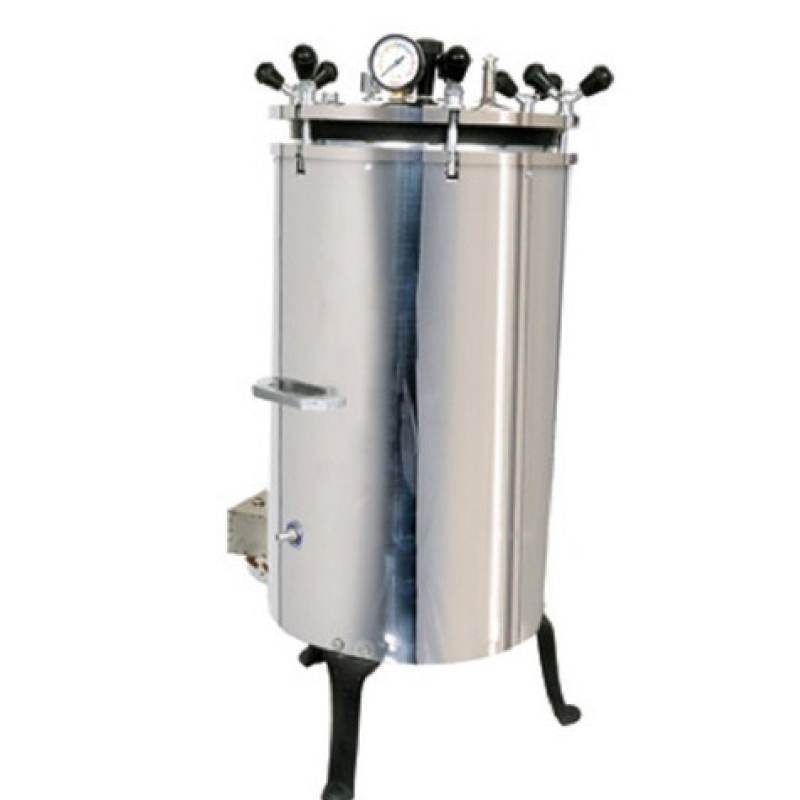

High Pressure Vertical Autoclave
Chamber Volume | 15-20 Litre |
No. of Trays | 2 Tray |
Mount Type | Floor Mounted Autoclave |
Size | 10x18 Inch |
Material | stainless steel and outer chamber is covered with M.S |
Power Consumption (KW) | 1.5kw |
Shape | Vertical |
Pressure | 10 to 20 PSI |
Cleanzar India is a renowned Manufacturer, and Exporter ofLaminar air flow Fume Hood ,Blood bank refrigerator,Seed Germinator,Plant growth chamber,Laminar air flow vertical,Air Shower,Vertical Autoclave, Across Pan India.It is used for Sterilization under saturated steam pressure at any selected point between 10 to 20p.s.i (adjustable). These are double walled units with the upto inner chamber (Boiler) made of stainless steel and outer chamber is covered with M.S. Radial locking system. Fitted with neoprene rubber gasket, all systems are hydraulically up to 40p.s.i, as a safety measure. All autoclaves are fitted with standard accessories such as water indicator, pressure gauge, steam release cock, spring loaded safety valve heating element, supplied complete as ordered.
Features:
S.NO | SIZE in mm | DIA x HGT. In inches | RATING |
1 | 250x450 | 10x18 | 1.5kw |
2 | 300x500 | 12x20 | 2.0kw |
3 | 350x550 | 14x22 | 3.0kw |
4 | 450x600 | 18x24 | 4.0kw |
5 | 550x750 | 22x30 | 6.0kw |
