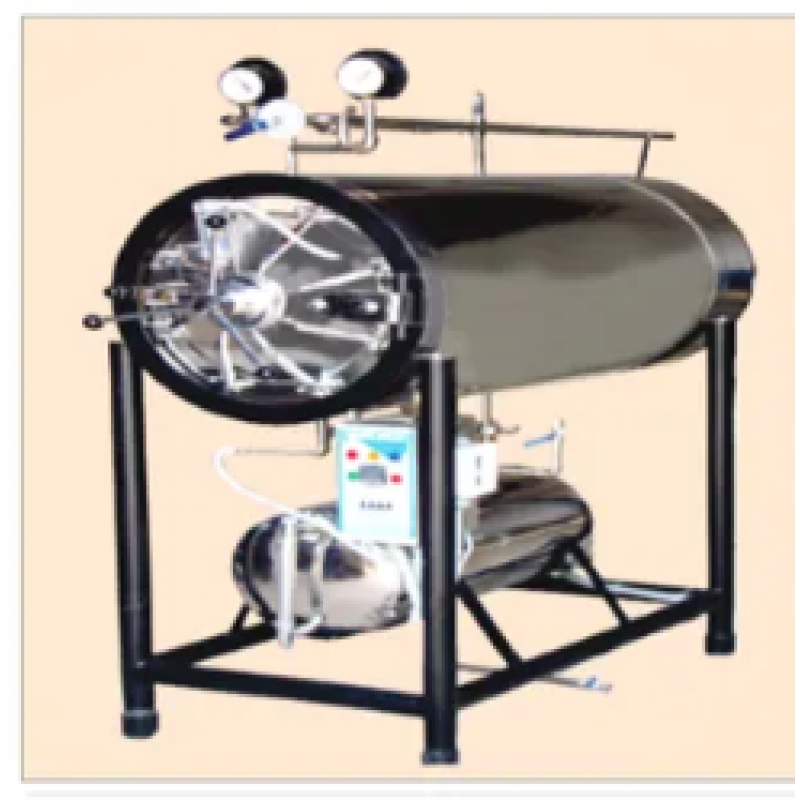

Horizontal Autoclave
Product Details:

Shape	Horizontal
Material	Stainless Steel
Insulation wall	Triple wall
Usage	Laboratories

• Steam boiler is fitted with water level indicator, pressure gauge, low water cut-off device and automatic pressure control device.
• Fitted with safety valve as a safety device. Drain valve is fitted at the side bottom for easy draining/cleaning.

• The unit is provided with a positive self-locking safety door which cannot be opened while the chamber is under pressure and disengages automatically when chamber is exhausted. This affords complete safety to the working personnel against explosive opening. Two seperate valves are provided for evacuating steam from inner chamber and jacket as and when desired. Sterilization Cycle is controlled by SINGLE POINT MULTIPORT Valve.
• Optional Accessories : Timer with Alarm System , Digital Pressure Indicator , Digital Temperature Indicator cum controller , S.S. Trolley

• The chamber discharge line is fitted with a moisture trap to absorb the condensate automatically thus preventing moistening of the loaded material to be sterilized.
• An automatic vacuum breaker is fitted to all units as a standard accessory, in order to break vacuum in case of steam condensation.

• The flanged immersion type heating element made from very high grade material provides fast formation of pressure in the system and are protected through an electric low water level cut-off device.
• All Sterilizers are provided with triple safety features, through a “PIEZOSTAT” (Automatic Pressure Control System) and a spring loaded safety valve fitted to the boiler/steam generator. The chamber is fitted with spring loaded safety valve and a dead weight release valve. Highly accurate temperature indicator is fitted for monitoring temperature.
