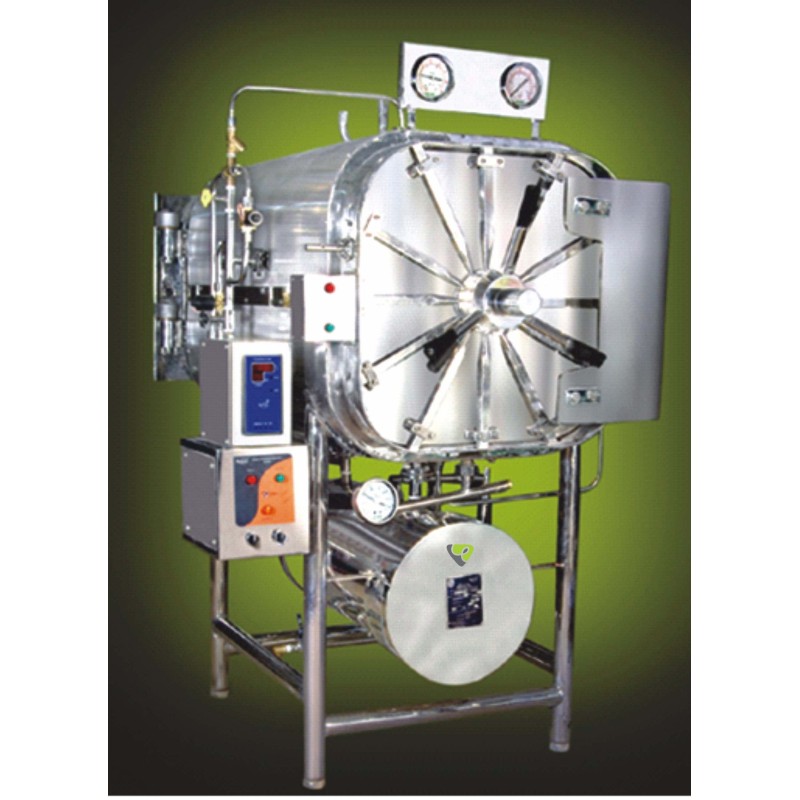

The offered range of Rectangular Steam Sterilizers. These products are developed utilizing superior grade raw material and advanced machinery in adherence with the highest quality norms and standards. The sterilizer is based on the principle that microbiological action of saturated steam at elevated temp is rapid and thorough. All models work on downward displacement of air principle which is most economical method of obtaining for all types of bulk sterilization which are commonly needed in Medical, Agricultural and Pharmaceutical institute. Suitable for sterilizing hospital dressings, linen, rubber plastic goods, surgical instruments, glassware’s and utensils etc. Construction Robust and rugged all weld construction which is leak proof unlike riveted construction. Inner chamber is made of thick plate of Mild Steel of non magnetic stainless steel of 304/316 quality and jacket is made out of rolled steel. Sterilizers will have single door made out of rolled steel lined with S.S. sheet on both sides. All the sterilizers are hydraulically tested to withstand 2.5 times the working pressure. The steam jacket is lined on the outer side with asbestos sheet or glass wool which prevents heat losses due to radiation and is covered by strong rolled steel sheet duly painted. Boiler Made of thick stainless steel plate suitably located under the sterilizer.

Features

• Double door Steam Sterilizer,

• Hinged door for HPHV Cycle.

• Fully automatic PLC Controlled.

• This Equipment is complete with PLC Controller, 8 channel automatic recorder.

• 4 Different piezostat at different depth to give uniform temperature and preStainless Steelure.

• Construction Robust and rugged all weld construction which is leak proof unlike riveted construction. Inner chamber is made of thick plate of Mild Steel of non magnetic stainless steel of 304/316 quality and jacket is made out of rolled steel.

• Sterilizers will have single door made out of rolled steel lined with STAINLESS STEEL. sheet on both sides.

• All the sterilizers are hydraulically tested to withstand 2.5 times then working pressure

• Operating range from 15psi to 22psi pressure.

• Upto 3 Psi as per customer requirements .


Available sizes

SIZE OF INNER CHAMBER (DIA X DEPTH) CAPACITY LOAD

450 X 450 X 900 MM 180 LITERS 18.00 KW

450 X 600 X 900 MM 240 LITERS 18.00 KW

600 X 600 X 900 MM 320 LITERS 18.00 KW

600 X 600 X 1200 MM 430 LITERS 27.00 KW

600 X 900 X 1500 MM 810 LITERS 36.00 KW

900 X 1050 X 2100 MM 1980 LITERS 48.00 KW

1050 X 1200 X 2100 MM 2650 LITERS 60.00 KW
