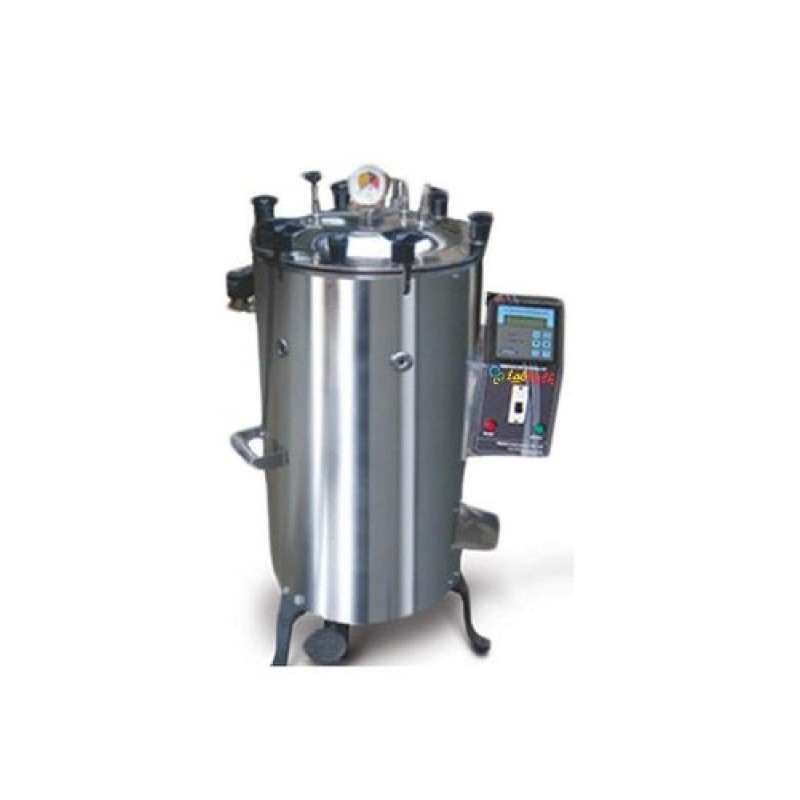

VERTICAL LABORATORY AUTOCLAVE
Product Details:
Application | Hospital, Lab & Pharma, Industrial, Dental |
Chamber Volume | 22 Litre |
Material | Stainless Steel |
Shape | Vertical |
Chamber Dimensions | 25 x 45 (Dia. x Ht. cm) |
Temperature Range | 121 DegreeC to 125 DegreeC |
Pressure Range | 15 to 22 PSI, factory set at 15 PSI |
Brand | Labfolk |
Country of Origin | Made in India |
Factory Set | 15 PSI at 121C |
Heater | Heating elements made from the best quality Kanthal DSD wire are used on refractory supports. |
Controlling System | Imported microprocessor based auto tune PID controller with CE mark & dual display of set value & pr |
GMP Model | Inner made of Stainless Steel (S.S.316) & Outer S.S.304 mirror finish |
Minimum Order Quantity | 1 |
Product Descriptions:
“Labfolk” make Laboratory Autoclave are suitable for Pharma & Biotech industries, Food research & Quality assurance labs, Agriculture research, Health care & Diagnostic labs, University, etc.
Standard Models: Inner made of Stainless Steel (S.S.304) with mirror finish & Outer GI/MS duly powder coated.
GMP Models: Inner made of Stainless Steel (S.S.316) & Outer S.S.304 mirror finish.
Construction: Vertical double walled design, has single chamber for Steam & water.Lid, flange & bottom plate is also made of S.S, all joints are Argon welded. Joint less silicon Gasket. Heavy duty industrial range heater. Lid fitting Pressure gauge 0-30 PSI, safety spring loaded Pressure valve, steam Release valve. Safety high pressure release valve. Foot lifting arrangement is provided in 121C/D/E/F, Basket made of thick Stainless Steel (S.S.) rod wire mesh.
Options:
SEMI AUTOMATIC SYSTEM FOR AUTOCLAVE : Supplied with Microprocessor Based Digital Temperature controller with inbuilt Timer Low water level cut off system with magnetic ???oat switch for heater’s safety.
FULLY AUTOMATIC SYSTEM FOR AUTOCLAVE : Supplied with Microprocessor Based Digital Temperature controller with inbuilt Timer Automatic purging of steam with solenoid valve. Low water level cut off system with magnetic float switch for heater’s safety
FULLY AUTOMATIC SYSTEM FOR AUTOCLAVE with printer interface: (To be order with fully automatic): Supplied with Microprocessor Based Digital Temperature controller with inbuilt Timer & printer interface Automatic purging of steam with solenoid valve. Low water level cut off system with magnetic float switch for heater’s safety.
Controlling System: Imported microprocessor based auto tune PID controller with CE mark & dual display of set value & process value.
Heater: Heating elements made from the best quality Kanthal DSD wire are used on refractory supports.
Temperature Range : 121°C to 125°C
Pressure Range : 15 to 22 PSI
Factory set : 15 PSI at 121°C
Supply : 230V AC, Single Phase, 50Hz
Additional Information:
- Item Code: LF-VLA-1
- Delivery Time: 1-2 Weeks
