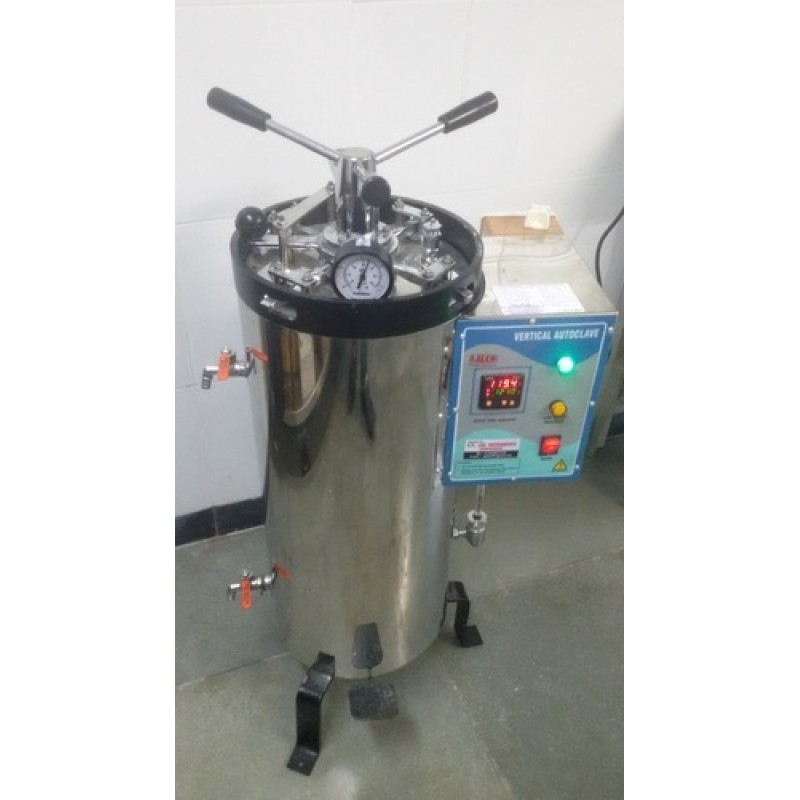

Vertical Stainless Steel Autoclave

Product Details :

1.    Autoclave vertical Fully Automatic Deluxe Model

It is used for sterilization under saturated steam pressure at any selected point between 5 to 20 p.s.i. (optional adjustable with pressure control switch). These are double walled units with inner chamber (boiler) made of 18 S.W.G. stainless steel and outer chamber is covered with M.S. lid is tightened by radial locking system. Fitted with neoprin rubber gasket, all systems are hydraulically tested upto 40 p.s.i. as a safety measure. All autoclaves are fitted with standard accessories such as Pressure gauge, steam release cock, spring loaded safety valve and heating element. Supplied complete with s.s. basket, cord and plug to work on 220/230 volts a.c. supply. ALL DELUXE MODELS besides being fitted with stainless steel/LID and having inner chamber made of S.S and outer chamber stainless steel.

Size                             Cap.

250 x 450 mm             22 Ltrs

300 x 550 mm             52 Ltrs

400 x 600 mm             100 Ltrs

WITH OPTINAL ACCESSORIES FITTED

(A)  Automatic pressure control switch

(B)  Redial locking system

(C)  PID Temp. Controller

(D)  Automatic 0-60 minutes”GERMAN” Timer

(E)  Automatic low water level cut-off device

Additional Information:

• Item Code: 296SS
