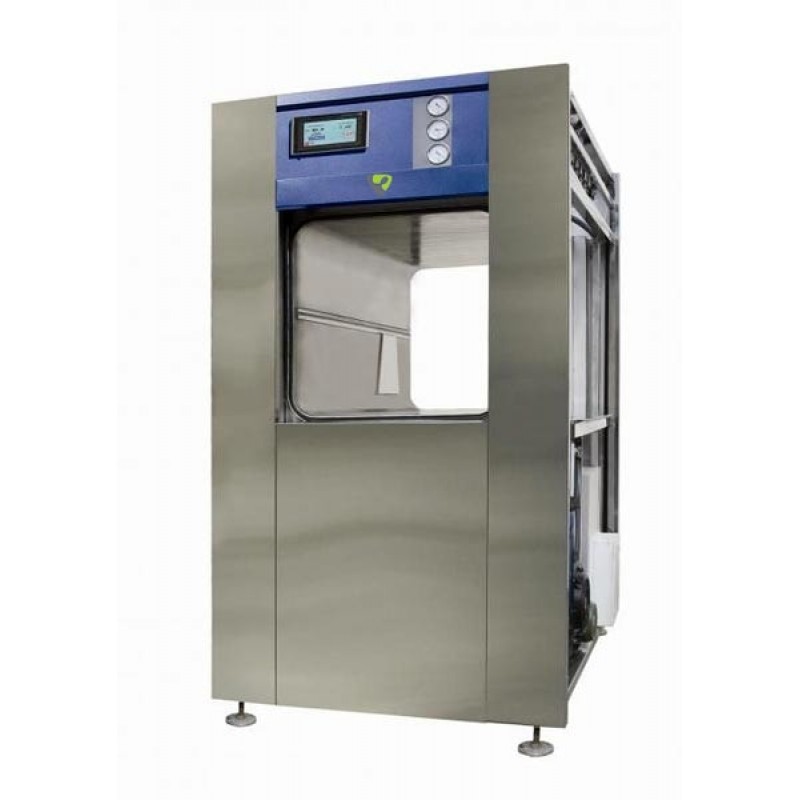

The autoclave operates with saturated steam as the sterilizing agent with a temperature range of 105 °C (221°F) to 137 °C (279 °F) and a working pressure that meets AMSE and PED requirements. Each autoclave model is available with either single or double door. Our quality features enable the convenience and durability needed to operate an autoclave with complete peace of mind. The fully jacketed chamber is constructed of long lasting 316L grade stainless steel with superior corrosion resistance. In addition, the generator and piping are constructed of stainless steel.

Features

• The doors are designed with independent mechanical and digital safety features that guarantee a safe working of the sterilizer.

• A safety device prevents the operator from opening the door when chamber is pressurized

• Steam is not allowed into the chamber when the door is open

• A cycle will not start if the door is open or not properly closed

• The door cannot open until chamber pressure reaches room pressure

• Sliding Door Safety -The sliding door progress will automatically stop if an obstruction is detected

• Double Door Safety – interlocks prevent both doors from being opened simultaneously.


Available sizes:

SIZE OF INNER CHAMBER (DIA X DEPTH) CAPACITY LOAD

450 X 450 X 900 MM 180 LITERS 18.00 KW

450 X 600 X 900 MM 240 LITERS 18.00 KW

600 X 600 X 900 MM 320 LITERS 18.00 KW

600 X 600 X 1200 MM 430 LITERS 27.00 KW

600 X 600 X 1500 MM 810 LITERS 36.00 KW

900 X 1050 X 2100 MM 1980 LITERS 48.00 KW

1050 X 1200 X 2100 MM 2650 LITERS 60.00 KW
