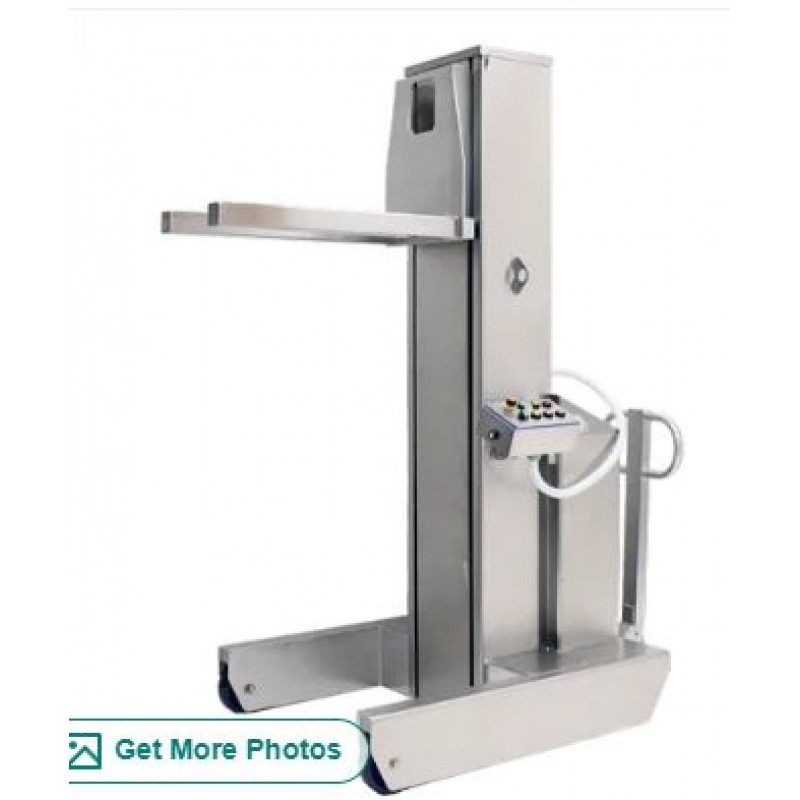

Bin Lifter
Product Details:
Automed Bin Lifters have been designed to meet all cGMP requirements to meet the varied applications in food, pharma and chemical industry.

Irrespective of the size, shape or weight of your Bin or Drum we have a solution to lift, move, invert and tilt them. We have integrated our lifters with SBV for containment applications.
Common Specifications [customized per application]
  Load Capacity 2,200 lbs. [1,000 kg]
  Material of Construction 304 stainless steel
  Surface Finish 35 µin [0.89 µm] Ra with smooth welds as laid
  Utility Electric: 480 V AC, 3 Phase, 60 Hz
  Pneumatic or Electric (Battery) Utility Options Available
  Controls momentary push button controls on wash-down control panel

Hazardous Rating configurable for use in Hazardous Locations: Class I Divisions 1 and 2 [ATEX Zones 1 and 2] or Class II Divisions 1 and 2  [ATEX Zones 21 and 22]
